Product Description

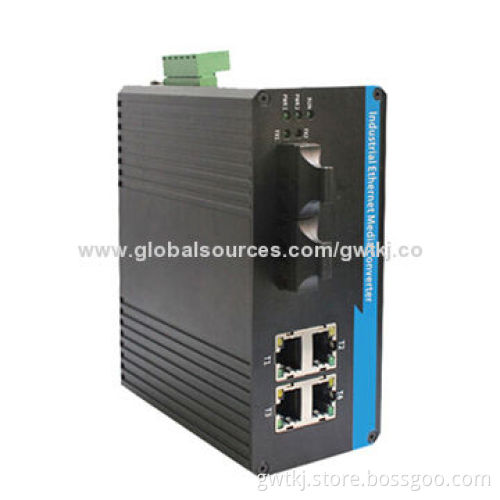

GWT-IMC-0204 series

Supports 1x10/100M Ethernet RJ45 ports + 1x100M optical port (SC/ST/FC/LC optional)

Supports IEEE802.1q, VLAN port isolation

Supports IEEE802.3, IEEE802.3x, IEEE802.3u standard

Supports full/half-duplex, MDI/MDI-X adaptive

Lightning protection level: 4-grade for power port

Complies with standard industrial design: -40 - 85°C operating temperature and dual redundant power input (18-36V DC)

Protection level: IP40, aluminum chassis, cooling surface design, no fan, no cooling holes

Overview:

GWTIMC0204 series industrial Ethernet media converter are equipped with 1 100M optical port (SC/ST/FC/LC are optional), 1 10/100M Ethernet RJ45 ports, which supports IEEE802.3, IEEE802.3x,
IEEE803.3u standard and support full/half-duplex, MDI/MDI-X self-adaptive
The LED system status indication can help system maintainers monitor the connection status of the network.

Specifications:

Interface:
- Fiber port: 100Base-FX, single/multimode, SC/ST/FC/LC are optional
- RJ45 port: 10/100Base-T(X) auto-negotiation
Power requirements:
- Input voltage: 24V DC(18-36V DC), redundant dual inputs
- Connector: 6-contact terminal blocks, 5.08mm
- Input current: <0.5A at 24V DC
- Overload current protection: present
- Reverse polarity protection: present
- Redundancy protection: present
Mechanical properties:
- Housing: IP40 protection, aluminum chassis
- Dimensions: 60.5*118*140mm
- Weight: 670g
- Installation: DIN-rail mounting, wall mounting
- Working environment:
- Operating temperature: -40 - 85℃
- Storage temperature: -40 - 85℃
- Relative humidity: 5 - 95% (non-condensing)
Standards/certifications:
- EMI:
  - FCC CFR47 part 15, EN55022, class A
- EMS:
  - IEC61000-4-2 (ESD) level 4
  - IEC61000-4-3 (RS) 10V/m (80MHz - 2GHz)
  - IEC61000-4-4 (EFT)
  - IEC61000-4-5 (surge)
  - IEC61000-4-8 (100A/m)
  - IEC61000-4-11
Machinery:
- Shock: IEC 60068-2-27
- Freefall: IEC 60068-2-32
- Vibration: IEC 60068-2-6
- Industry: IEC

GWTIMC0204 series industrial Ethernet media converter are equipped with 1 100M optical port (SC/ST/FC/LC are optional), 1 10/100M Ethernet RJ45 ports, which supports IEEE802.3, IEEE802.3x,

IEEE803.3u standard and support full/half-duplex, MDI/MDI-X self-adaptive

The LED system status indication can help system maintainers monitor the connection status of the network.

Interface:

Fiber port: 100Base-FX, single/multimode, SC/ST/FC/LC are optional
RJ45 port: 10/100Base-T(X) auto-negotiation

Power requirements:

Input voltage: 24V DC(18-36V DC), redundant dual inputs
Connector: 6-contact terminal blocks, 5.08mm
Input current: <0.5A at 24V DC
Overload current protection: present
Reverse polarity protection: present
Redundancy protection: present

Mechanical properties:

Housing: IP40 protection, aluminum chassis
Dimensions: 60.5*118*140mm
Weight: 670g
Installation: DIN-rail mounting, wall mounting
Working environment:
Operating temperature: -40 - 85℃
Storage temperature: -40 - 85℃
Relative humidity: 5 - 95% (non-condensing)

Standards/certifications:

EMI:
- FCC CFR47 part 15, EN55022, class A
EMS:
- IEC61000-4-2 (ESD) level 4
- IEC61000-4-3 (RS) 10V/m (80MHz - 2GHz)
- IEC61000-4-4 (EFT)
- IEC61000-4-5 (surge)
- IEC61000-4-8 (100A/m)
- IEC61000-4-11
