Gigabit managed industrial Ethernet switch, SFP slots, support self-healing redundant ring network

Gigabit managed industrial Ethernet switch, SFP slots, support self-healing redundant ring network

Get Latest Price

Payment Type:: T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

GWT-IES-M1204 series:

Powerful web management function
2 Gigabit optical port effectively establish 1000M self-healing redundant ring network
Proprietary protocol “GWT-Ring” (self-recovery time<15ms) and RSTP/STP/MSTP for network redundancy
SNMPv3, IEEE802.1X, HTTPS and SSH to enhance network security
Web, CLI, Telnet/serial console, Windows utility, and SNMP management
Complies with standard industrial design:-40-85℃ operating temperature and redundant power input (18~36V DC)
Protection level: IP40, aluminum chassis, cooling surface design

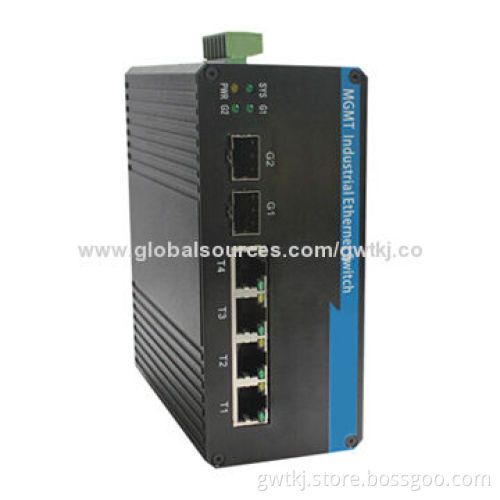

Overview:

GWTIESM1204 series managed industrial Ethernet switches are equipped with 2 SFP Gigabit optical ports and 4 10/100M Ethernet RJ45 ports,which support the “GWT-Ring”redundant ring (self-recovery time<15ms), RSTP/STP/MSTP protocol to enhance the reliability of the network
The superb hardware reliability is especially suitable for industrial applications

Features:

Command line interface (CLI) for quickly configuration major managed functions
IGMP Snooping and GMRP for filtering multicast traffic
Port-based VLAN, IEEE 802.1Q VLAN and GVRP protocol to ease network planning
Port mirroring for online debugging
Ethernet/IP and Modbus/TCP protocols for device management and monitoring
Multicast and broadcast storm control
Port Trunking for optimum bandwidth utilization
QoS and ToS/DiffServ for flow control and management
RMON for efficient network monitoring and proactive capability
Bandwidth management prevents unpredictable network status
Lock port function for blocking unauthorized access based on MAC address
Reset: supported to restart and restore the default configuration

Powerful web management function

2 Gigabit optical port effectively establish 1000M self-healing redundant ring network

Proprietary protocol “GWT-Ring” (self-recovery time<15ms) and RSTP/STP/MSTP for network redundancy

SNMPv3, IEEE802.1X, HTTPS and SSH to enhance network security

Web, CLI, Telnet/serial console, Windows utility, and SNMP management

Complies with standard industrial design:-40-85℃ operating temperature and redundant power input (18~36V DC)

Protection level: IP40, aluminum chassis, cooling surface design

GWTIESM1204 series managed industrial Ethernet switches are equipped with 2 SFP Gigabit optical ports and 4 10/100M Ethernet RJ45 ports,which support the “GWT-Ring”redundant ring (self-recovery time<15ms), RSTP/STP/MSTP protocol to enhance the reliability of the network

The superb hardware reliability is especially suitable for industrial applications

Command line interface (CLI) for quickly configuration major managed functions

IGMP Snooping and GMRP for filtering multicast traffic

Port-based VLAN, IEEE 802.1Q VLAN and GVRP protocol to ease network planning

Port mirroring for online debugging

Ethernet/IP and Modbus/TCP protocols for device management and monitoring

Multicast and broadcast storm control

Port Trunking for optimum bandwidth utilization

QoS and ToS/DiffServ for flow control and management

RMON for efficient network monitoring and proactive capability

Bandwidth management prevents unpredictable network status

Lock port function for blocking unauthorized access based on MAC address
