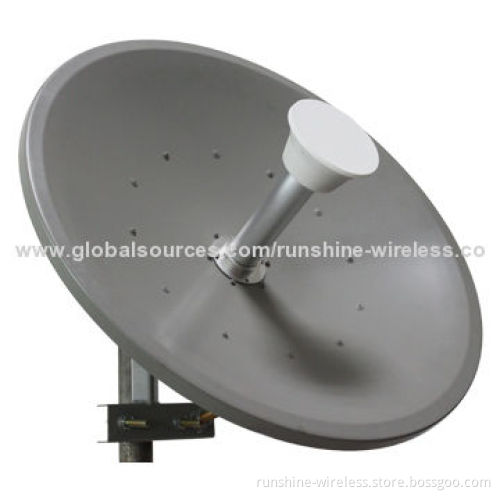

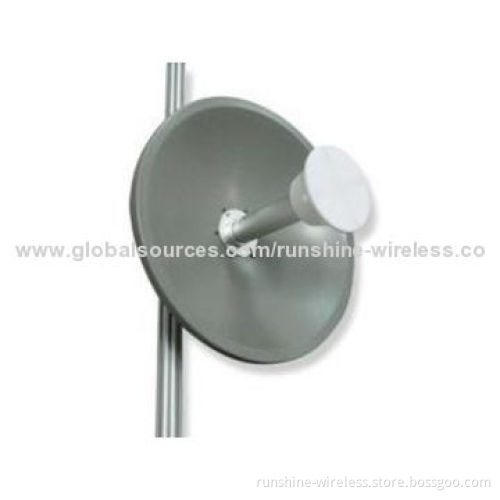

5.8GHz High-gain 34dBi Outdoor Dual-polarization MIMO Parabolic Dish Antenna for AP CPE Bridge Use
  • 5.8GHz High-gain 34dBi Outdoor Dual-polarization MIMO Parabolic Dish Antenna for AP CPE Bridge Use
  • 5.8GHz High-gain 34dBi Outdoor Dual-polarization MIMO Parabolic Dish Antenna for AP CPE Bridge Use
5.8GHz High-gain 34dBi Outdoor Dual-polarization MIMO Parabolic Dish Antenna for AP CPE Bridge Use
5.8GHz High-gain 34dBi Outdoor Dual-polarization MIMO Parabolic Dish Antenna for AP CPE Bridge Use

5.8GHz High-gain 34dBi Outdoor Dual-polarization MIMO Parabolic Dish Antenna for AP CPE Bridge Use

Get Latest Price
Payment Type:
TT, Western Union, PayPal, MoneyGram
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: TT, Western Union, PayPal, MoneyGram
Product Description
Product Description
  • Features:
    • High-gain, larger F/B ratio
    • Die-cast aluminum reflector
    • UV stable coat finish
    • Can be installed H or V
  • Applications:
    • 5.8GHz Wi-Fi WILAN systems
    • Long-distance transmission
    • Wireless bridge wireless AP
  • Electric specifications:
    • Frequency range: 5,150 to 5,850MHz
    • Bandwidth: 700MHz
    • Gain: 34dBi
    • Beamwidth:
      • Horizontal: 6°
      • Vertical: 9°
    • F/B ratio: ≥16dB
    • VSWR: ≤1.5
    • Input impedance: 50Ω
    • Polarization: horizontal and vertical
    • Maximum power: 100W
    • Lightning protection: DC ground
    • Connector model: N-type or can be customized
  • Mechanical specifications:
    • Size: Φ900 mm
    • Cable length: 0.3m
    • Antenna weight: 22kg
    • Working temperature: -40 to 60°C
    • Rated wind velocity: 60m/second
    • Clamp: U
    • Pole diameter: Φ40 to 50mm
  • High-gain, larger F/B ratio
  • Die-cast aluminum reflector
  • UV stable coat finish
  • Can be installed H or V
  • 5.8GHz Wi-Fi WILAN systems
  • Long-distance transmission
  • Wireless bridge wireless AP
  • Frequency range: 5,150 to 5,850MHz
  • Bandwidth: 700MHz
  • Gain: 34dBi
  • Beamwidth:
    • Horizontal: 6°
    • Vertical: 9°
  • F/B ratio: ≥16dB
  • VSWR: ≤1.5
  • Input impedance: 50Ω
  • Polarization: horizontal and vertical
  • Maximum power: 100W
  • Lightning protection: DC ground
  • Connector model: N-type or can be customized
  • Horizontal: 6°
  • Vertical: 9°
  • Size: Φ900 mm
  • Cable length: 0.3m
  • Antenna weight: 22kg
  • Working temperature: -40 to 60°C
  • Rated wind velocity: 60m/second
  • Clamp: U
  • Pole diameter: Φ40 to 50mm
