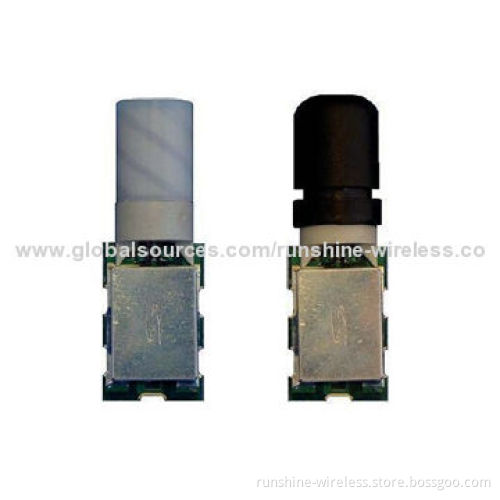

28dBi High-gain Car Navigation Quadrifilar Helix GPS Antennas with Corrosion Resistance

28dBi High-gain Car Navigation Quadrifilar Helix GPS Antennas with Corrosion Resistance

Get Latest Price

Payment Type:: TT, Western Union, PayPal, MoneyGram

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	TT, Western Union, PayPal, MoneyGram

Product Description

Features:

Good appearance
Durable, corrosion resistance
High-sensitive
Receive signal for many satellites
Strong signal accurate position

Applications:

Car navigation
Security, tracking
Car GPS
PDA/mobile phones/smartphones
Automotive industry
Navigation systems
Aeroplane servicing
Satellite
Positioning device

Specifications:

GPS active antenna
Ideal for tight integration
Comparable Sarantel active antenna dimensions
SMT compatible
Small size

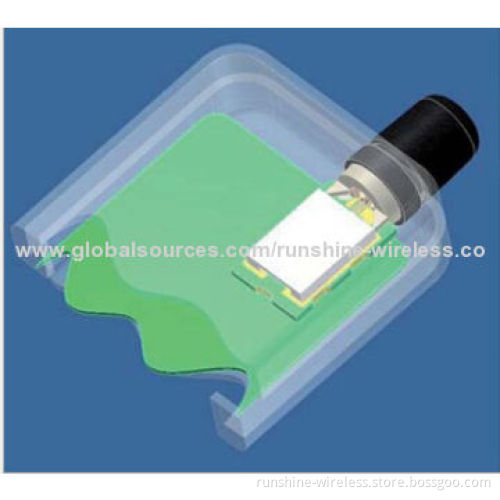

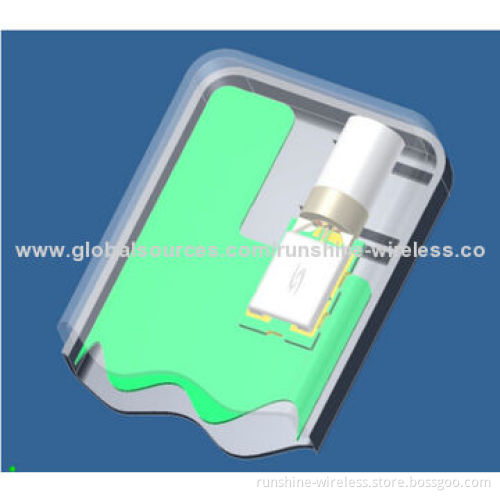

Internal and external mounting
Low-voltage/current
High-gain (28dB) typical
Antenna element:
Center frequency: 1575.42MHz
Bandwidth: 90MHz
Gain: 1dBi typical
VSWR: 2 (maximum)
Return loss: -10dBi (maximum)
Polarization: linear
Pattern: omni-directional
Impedance: 50 Ω
LNA/filter:
- LNA gain (without cable): 28dBi typical
- Noise figure: 1.5dB
- Filter out band attenuation (f0 = 1575.42MHz):
  - 7dB minimum f0 ±20MHz
  - 20dB minimum f0 ±50MHz
  - 30dB minimum f0 ±100MHz
- VSWR: <2.0
- DC voltage: 2.7/3.0/3.3/5.0/3.0 to 5.0V
DC current: 11A (maximum)
Size: 14.6 x 48.6 x 3.7mm
