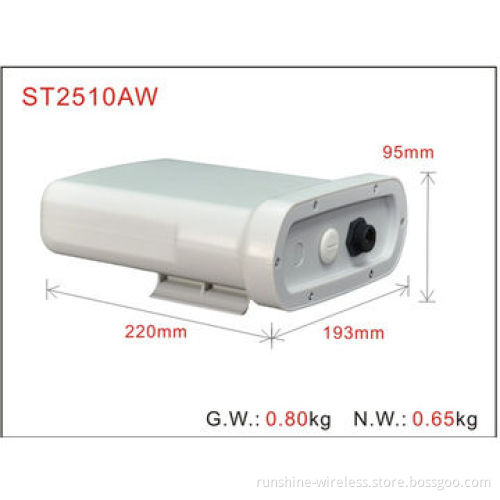

Outdoor powerful industry class long range 2.4GHZ 3~5KM wireless bridge with 15dbi panel antenna

Outdoor powerful industry class long range 2.4GHZ 3~5KM wireless bridge with 15dbi panel antenna

Get Latest Price

Payment Type:: T/T, Western Union, PayPal or MoneyGram

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, Western Union, PayPal or MoneyGram

Product Description

Specifications:

Built-in 15dBi antenna
Can scan around sources of interference
Support Chinese and English

Functions:

Interface is simple and convenient debugging
Parameter interface graphical
The different standards, different power: 27dBm (802.11b) 25dBm (802.11g), 23dBm (802.11b), depending on the distance and bandwidth requirements to set different standards in order to achieve the best results
Supports spanning tree protocol can effectively suppress broadcast storms
Supports QOS (WMM) multimedia protocol, the transfer of large volumes of multimedia signals
Supports Chinese simplified, Chinese traditional, English interface, more convenient setting
Upgrade, backup support for popular browser web operation
Supports encryption, easy and confidential
Strong anti-interference
Suitable for use in low-temperature environments
Scalability, the network is convenient

Specification:

Standard: IEEE 802.11n, IEEE 802.11b/g, IEEE 802.3, IEEE 802.3u
Type of Chips: Atheros AR9331(USA)
SDRAM memory: 32 M Byte
Flash memory: 8 M Byte
Wireless communication type: DSSS/OFDM
Modulation mode: DSSS with CCK, DQPSK, DBPSK/ OFDM with BPSK, QPSK, 16QAM, 64QAM
Frequency range: USA FCC: 2.412~2.462 GHz (11- channel)/ Europe CE/ETSI: 2.412~2.472 GHz (13- channel)

Built-in 15dBi antenna

Can scan around sources of interference

Support Chinese and English

Interface is simple and convenient debugging

Parameter interface graphical

The different standards, different power: 27dBm (802.11b) 25dBm (802.11g), 23dBm (802.11b), depending on the distance and bandwidth requirements to set different standards in order to achieve the best results

Supports spanning tree protocol can effectively suppress broadcast storms

Supports QOS (WMM) multimedia protocol, the transfer of large volumes of multimedia signals

Supports Chinese simplified, Chinese traditional, English interface, more convenient setting

Upgrade, backup support for popular browser web operation

Supports encryption, easy and confidential

Strong anti-interference

Suitable for use in low-temperature environments

Scalability, the network is convenient

Standard: IEEE 802.11n, IEEE 802.11b/g, IEEE 802.3, IEEE 802.3u

Type of Chips: Atheros AR9331(USA)

SDRAM memory: 32 M Byte

Flash memory: 8 M Byte

Wireless communication type: DSSS/OFDM

Modulation mode: DSSS with CCK, DQPSK, DBPSK/ OFDM with BPSK, QPSK, 16QAM, 64QAM

Frequency range: USA FCC: 2.412~2.462 GHz (11- channel)/ Europe CE/ETSI: 2.412~2.472 GHz (13- channel)

Transmitting power:

802.11b: 27±1dBm@1~11Mbps
802.11g: 25±1dBm@6~54Mbps
802.11n: 23±2dBm@HT20, 23±2dBm@HT40

Transmission speed:

IEEE802.11b: 1/2/5.5/11Mbps
IEEE802.11g: 6/9/12/18/24/36/48/54Mbps
IEEE802.11n: MCS0~MCS7
Interface type: Auto sensing MDI/MDI-X Ethernet 10/100Base-TX: RJ-45

802.11b: 27±1dBm@1~11Mbps

802.11g: 25±1dBm@6~54Mbps

802.11n: 23±2dBm@HT20, 23±2dBm@HT40

IEEE802.11b: 1/2/5.5/11Mbps

IEEE802.11g: 6/9/12/18/24/36/48/54Mbps

IEEE802.11n: MCS0~MCS7

Interface type: Auto sensing MDI/MDI-X Ethernet 10/100Base-TX: RJ-45

Sensitivity

IEEE 802.11b: -92dBm @ 1Mbps, -87dBm @ 11Mbps, PER < 8%
IEEE 802.11g: -88dBm @ 6Mbps, -73dBm @ 54Mbps, PER < 10%
IEEE 802.11n: -88dBm @ MCS0 -70dBm @ MCS7, HT20. -85dBm @ MCS0 -68dBm @MCS7, HT40

Antenna: Built-in 15dBi panel antenna

Safety encryption: WEP, WPA/WPA2 enterprise, WPA-PSK/WPA2-PSK, WEP 802.1x

Wireless setting:

Work mode selection - AP (wireless coverage mode), WDS (bridge mode)
Client Bridge + Universal the Repeater (client plus repeater mode) channel selection can choose according to different countries and regions (USA /Europe/Japan) transmitter power adjustment step 1dB

Network mode - 11b, 11g and 11gn of HT20 11gn HT40

IEEE 802.11b: -92dBm @ 1Mbps, -87dBm @ 11Mbps, PER < 8%

IEEE 802.11g: -88dBm @ 6Mbps, -73dBm @ 54Mbps, PER < 10%

IEEE 802.11n: -88dBm @ MCS0 -70dBm @ MCS7, HT20. -85dBm @ MCS0 -68dBm @MCS7, HT40

Work mode selection - AP (wireless coverage mode), WDS (bridge mode)

Client Bridge + Universal the Repeater (client plus repeater mode) channel selection can choose according to different countries and regions (USA /Europe/Japan) transmitter power adjustment step 1dB
