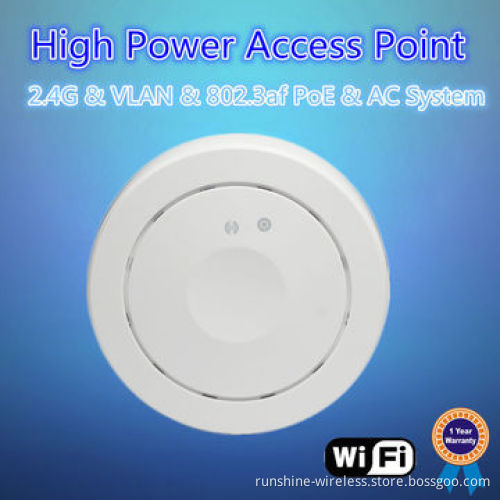

Indoor 300mbps long range ceiling mount wireless AP with 802.1Q VLAN access control system

Indoor 300mbps long range ceiling mount wireless AP with 802.1Q VLAN access control system

Get Latest Price

Payment Type:: T/T, Western Union, PayPal or MoneyGram

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, Western Union, PayPal or MoneyGram

Product Description

Feature:

300Mbs wireless speed
2*5dbi American Airgain antenna
Access control system
802.1Q VLAN
Wi-Fi repeater antenna

Specification

MCU: RT3052
RF: 2T2R, 300Mbps MIMO tech, comply with IEEE 802.11N standard
Memory: 32MB DDR RAM (May extend to 64MB)
Flash: 4MB (May extend to 8MB)

Interface:

2 x RJ-45 for 10/100 Mbps WAN/LAN port (supports 12V/24V POE)
1 x Reset button (reset and factory defaults)
1 x Power DC jack

Power: 12V (POE 12V/24V)/1A, 110V/220V

Antenna: Built-in 2PCS Omni 5dbi antenna

Size: 16.8*4.5CM

Frequency range: 802.11b/g/n: 2.4~2.4835GHz

U.S., Europe and Japan product covering 2.400 to 2.4835 GHz, programmable for different country regulations

Modulation: OFDM = BPSK, QPSK, 16-QAM, 64-QAM, DSSS = DBPSK, DQPSK, CCK

Throughput: 300Mbps

Sensitivity:

802.11n (2.4GHz): -90dBm @ MCS0, -70dBm @ MCS7, -90dBm @ MCS8, -68dBm @ MCS15
802.11g: - 90dBm @ 6Mbps, - 72dBm @ 54Mbps
802.11b: - 95dBm @ 1Mbps, - 90dBm @ 11Mbps

Output power

Radio1 (WLAN1):

802.11n (2.4GHz)(± 1.5dBm)
802.11g (± 1.5dBm)
802.11b (±1.5dBm)
25dBm @ MCS0~2/MCS8~10
25dBm @ 6~24Mbps
25dBm @1~11Mbps
24dBm @ MCS3/MCS11
25dBm @ 36Mbps
23dBm @ MCS4/MCS12
22dBm @ 48Mbps
23dBm @ MCS5/MCS13
22dBm @ 54Mbps
22dBm @ MCS6/MCS14
22dBm @ MCS7/MCS15

Operation mode: Gateway/AP/repeater/ WDS/WISP

Protocol/Standard:

IEEE 802.3 (Ethernet)
IEEE 802.3u (Fast Ethernet)
IEEE 802.11b/g/n (2.4G WLAN)

Wireless:

Auto-channel selection
Distance Control (802.1 x ACK timeout)
Multiple SSID (4 SSID)
BSSID

Security:

WEP Encryption-64/128/152 bit
WPA/WPA2 Personal (WPA-PSK using TKIP or AES)
WPA/WPA2 Enterprise (WPA-EAP using TKIP)
Hide SSID

Management:

System settings
Web-based configuration (HTTP/Telnet)
Firmware upgrade
Upgrade firmware via web browser or TFTP

Administration:

Admin Password can be configured

System monitoring:

Status in hand, useful statistic and event log
Supports local logs, logs host, logs file export
Reset or factory defaults
Backup
Restore

300Mbs wireless speed

2*5dbi American Airgain antenna

Access control system

802.1Q VLAN

Wi-Fi repeater antenna

MCU: RT3052

RF: 2T2R, 300Mbps MIMO tech, comply with IEEE 802.11N standard

Memory: 32MB DDR RAM (May extend to 64MB)

Flash: 4MB (May extend to 8MB)

2 x RJ-45 for 10/100 Mbps WAN/LAN port (supports 12V/24V POE)

1 x Reset button (reset and factory defaults)

1 x Power DC jack

802.11n (2.4GHz): -90dBm @ MCS0, -70dBm @ MCS7, -90dBm @ MCS8, -68dBm @ MCS15

802.11g: - 90dBm @ 6Mbps, - 72dBm @ 54Mbps

802.11b: - 95dBm @ 1Mbps, - 90dBm @ 11Mbps

802.11n (2.4GHz)(± 1.5dBm)

802.11g (± 1.5dBm)

802.11b (±1.5dBm)

25dBm @ MCS0~2/MCS8~10

25dBm @ 6~24Mbps

25dBm @1~11Mbps

24dBm @ MCS3/MCS11

25dBm @ 36Mbps

23dBm @ MCS4/MCS12

22dBm @ 48Mbps

23dBm @ MCS5/MCS13

22dBm @ 54Mbps

22dBm @ MCS6/MCS14

22dBm @ MCS7/MCS15

IEEE 802.3 (Ethernet)

IEEE 802.3u (Fast Ethernet)

IEEE 802.11b/g/n (2.4G WLAN)

Auto-channel selection

Distance Control (802.1 x ACK timeout)

Multiple SSID (4 SSID)

BSSID

WEP Encryption-64/128/152 bit

WPA/WPA2 Personal (WPA-PSK using TKIP or AES)

WPA/WPA2 Enterprise (WPA-EAP using TKIP)

Hide SSID

System settings

Web-based configuration (HTTP/Telnet)

Firmware upgrade

Upgrade firmware via web browser or TFTP

Admin Password can be configured

Status in hand, useful statistic and event log

Supports local logs, logs host, logs file export

Reset or factory defaults

Backup

Restore
