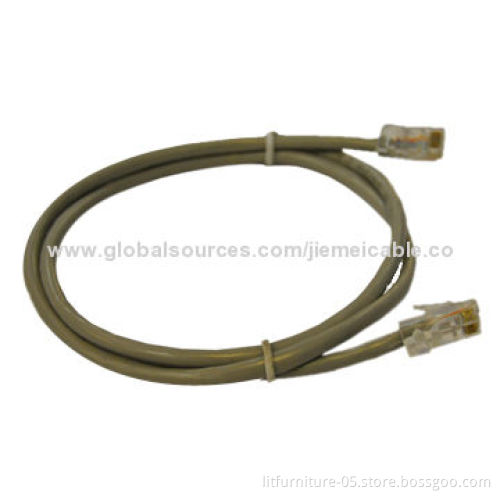

UTP Cat5 with RJ45 LAN Cable, AWG24New

Get Latest Price

Payment Type:: T/T or L/C

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or L/C

Product Description

Specifications: AWG24 UTP Cat5e network cable

Used for Ethernet

Conductor optional

New materials

OEM/ODM orders are welcome

AWG24 UTP Cat5e network cable

Accepts OEM, authorized supplies, factory experience since 1989 over 24 years

Cable specifications:

Type: 0.50mm CU/CCA/CCS CAT5e cable FLUKE test new PVC
CE, RoHS, ISO, TLC and CCC certified
Standards: TIA/EIA 568A/568B IEEE802.3U/IEEE 802.5 ISO 11801EN50173

Conductor:

Material: pure copper
Diameter: (1/0.50 ±0.01mm)
Construction: 4 x 2 x 0.50mm
Ripcord: yes
Dielectric: material
HDPE new material
Insulation thickness: 0.269mm, ±0.05mm
Insulation OD: 0.975mm, ±0.03mm
Pair: 4 pairs
Thickness: 0.6 to 0.1mm
Jacket nominal OD
Overall diameter: 5.8mm, ±0.1mm
Suitable for: indoor use
Work data pass: >150m
Legend (surface ink print)
Good-quality LAN cable, or customized
Rated temperatures: -20-70°C
Packaging details: 1,000ft/roll or 305m/roll, or customized
Packaging: pull easy box, paper carton
Carton size: 73 x 45.8 x 37cm
Loading quantity/ctn: 4 box/carton

Applications:

Ethernet, 10 base-T, 100 base-T4, ATM
TP-PMD seppch, telephone, multimedia, trunk wiring
ISO9001:2000 CE standard
Fit for 10Base-T, 100Base-T and 100Base-TX
Operating temperatures: -20 to 75°C

Type: 0.50mm CU/CCA/CCS CAT5e cable FLUKE test new PVC

CE, RoHS, ISO, TLC and CCC certified

Standards: TIA/EIA 568A/568B IEEE802.3U/IEEE 802.5 ISO 11801EN50173

Material: pure copper

Diameter: (1/0.50 ±0.01mm)

Construction: 4 x 2 x 0.50mm

Ripcord: yes

Dielectric: material

HDPE new material

Insulation thickness: 0.269mm, ±0.05mm

Insulation OD: 0.975mm, ±0.03mm

Pair: 4 pairs

Thickness: 0.6 to 0.1mm

Jacket nominal OD

Overall diameter: 5.8mm, ±0.1mm

Suitable for: indoor use

Work data pass: >150m

Legend (surface ink print)

Good-quality LAN cable, or customized

Rated temperatures: -20-70°C

Packaging details: 1,000ft/roll or 305m/roll, or customized

Packaging: pull easy box, paper carton

Carton size: 73 x 45.8 x 37cm

Loading quantity/ctn: 4 box/carton

Ethernet, 10 base-T, 100 base-T4, ATM

TP-PMD seppch, telephone, multimedia, trunk wiring

ISO9001:2000 CE standard

Fit for 10Base-T, 100Base-T and 100Base-TX

Operating temperatures: -20 to 75°C
