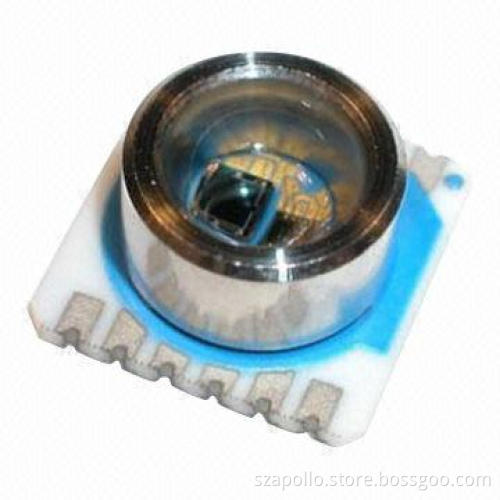

MS5535-30C 30bar Pressure Sensor Module
- Payment Type:
- T/T
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Payment Type: | T/T |
|---|
Product Description
Product Description
- Integrated pressure sensor (9x9mm)
- Pressure range: 0-30bar (435 PSI)
- 16-bit ADC
- 6 coefficients for software compensation stored on-chip
- 3-wire serial interface
- 1 system clock line: 32.768kHz
- Temperature range -40-+125°C
- Low voltage: 2.2 to 3.6V
- Low power (standby current of 0.1uA)
- Pb-free and RoHS-compliant
- Soldering profile: 240-250°C
- Low supply current
- No external components required
- Mobile water depth measurement systems
- Diving computers and divers watches
- The MS5535-30C is a SMD-hybrid device including a piezoresistive pressure sensor and an ADC-Interface IC
- Provides a 16-bit data word from a pressure and temperature dependent voltage
- Additionally the module contains 6 readable coefficients for a highly accurate software calibration of the sensor
- MS5535-30C is a low power, low voltage device with automatic power down (on/off) switching
- 3-wire interface is used for all communications with a microcontroller
- Fully software compatible to the previous versions (MS5535A, MS5535B and MS5535C)
- Compared to the versions A and B, the ESD sensitivity has been improved to 4kV on all pins
