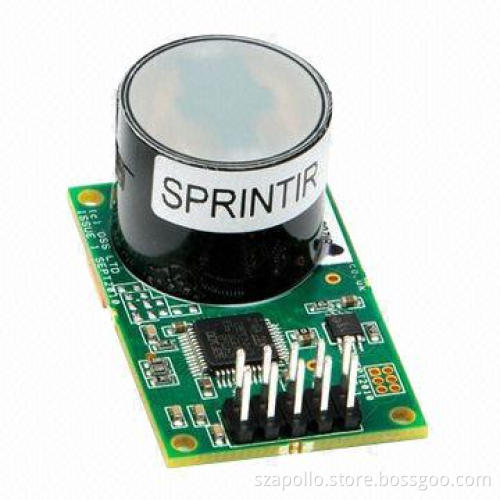

NDIR CO<sub>2</sub> Sensor, 20Hz, 5 % VOL, High-speed

NDIR CO₂ Sensor, 20Hz, 5 % VOL, High-speed

Get Latest Price

Payment Type:: T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

Fastest, most accurate CO₂ sensor on market

Breakthrough in NDIR technology, uses advanced solid state indium antimonide LED’s and detectors to offer a robust sensor with no moving parts, no heated filaments and incredibly low power requirements

Comes in four versions: from 5 to 100% - all capable of same high-speed CO₂ measurement

Makes SprintIR especially useful in biological applications

Real-time sensing: 20Hz

Low power requirements

Virtually instant detection

Specification:

Measurement ranges: from 5% VOL
Ultra-low power: 3.3V, 3.5mW
Peak current: only 33mA
Weight: 8g with tube cap, 29g
Serial communication: 9600/8/1/N

CO₂ measurement

Sensing method: NDIR with gold plating optics
Sample method: diffusion (tube adapter available)
Measurement range: 0 to 5/0 to 20/0 to 60/0 to 100%
Accuracy: ±70ppm, ±5% of reading
Response time: 2s to initial reading, 1min to operational

Electrical/mechanical:

Power input: 3.2 to 5.5V DC, <35mW

Measurement ranges: from 5% VOL

Ultra-low power: 3.3V, 3.5mW

Peak current: only 33mA

Weight: 8g with tube cap, 29g

Serial communication: 9600/8/1/N

Sensing method: NDIR with gold plating optics

Sample method: diffusion (tube adapter available)

Measurement range: 0 to 5/0 to 20/0 to 60/0 to 100%

Accuracy: ±70ppm, ±5% of reading

Response time: 2s to initial reading, 1min to operational

Power input: 3.2 to 5.5V DC, <35mW
