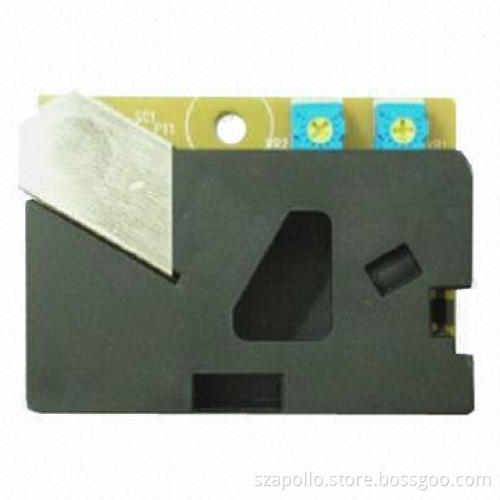

Suspended particle and pollen sensor, DSM501 for air quality monitor

Get Latest Price

Payment Type:: T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

Dust sensor module: DSM501 series detects the level of indoor airborne dust, particles, and pollen, and ideal for use in stand-alone air cleaner or IAQ monitor, PWM output of the sensor can be directly connected to μ-com to control fan speed or ventilation and also to display the level of particles, detectable size of particle is limited to minimum 0.7μm, and the application for smoke or fire alarm is prohibited

Types:

2-1. DSM501A: 2mm pitch connector type (20010WR-05)
2-2. DSM501B: 2.5mm pitch connector type (S5B-EH)

Electrical characteristics:

Supply voltage: 5V DC, ±10%
Power consumption: 90mA
Operating temperature range: -10 to +65°C
Operating humidity range: 95% RH or less (without dew condensation)
Recommend storage condition: -20 to +80°C
Dimensions: W59 * H45 * D20 (mm)
Detectable particle size: approximately 1um (minimum)
Detectable range of concentration: 0 to 1.4mg/m³
Output signal: PWM (pulse width modulation)
Time for stabilization: 1 minute after power turned on
Sensor characteristics: to be maintained in between the upper limit and lower limit of the standard dust sensor unit
