10-300W mono and poly panel (system or separate parts sales)

10-300W mono and poly panel (system or separate parts sales)

Get Latest Price

Payment Type:: T/T, L/C, Western Union or Cash

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C, Western Union or Cash

Product Description

Features

Nominal 24V DC for standard output
High efficiency
Outstanding low-light performance
High transmission tempered glass
Rugged design to withstands high wind pressure and snow load, easy installation

Aesthetic appearance

Design to meet unique demand of customer
High reliability with guaranteed +/-10% output power tolerance
Tempered glass laminated with aluminum frame

Life time: 20-30 years

Temperature co-efficiency: A=+1,46mA, B=-79mV, Rp/p=0.43

Power specification at 1kw/m²

Output cable: multi-contact connectors

Diodes: three 10A, 1kV schottky by pass diodes included

Construction:

Fromt high-transmission 32mm tempered glass
Back: TPT
Encapsulant: EVA

Frame: aluminum alloy

Mono solar panel efficiency 17% and Poly solar panel 15-16%

System applications:

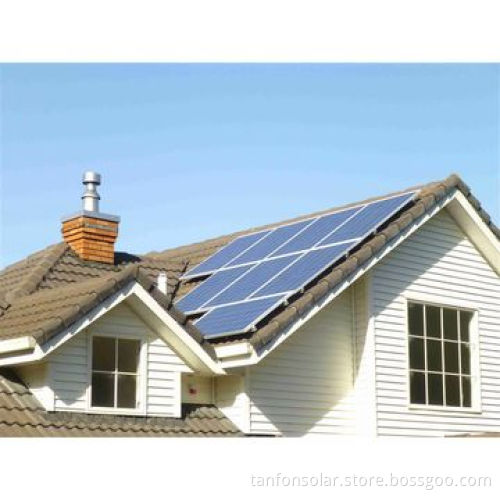

Living house and home building
Office building, factory and warehouse
Shopping mall, venue, stadium and so on
Power station, field operation and some huge engineer construction

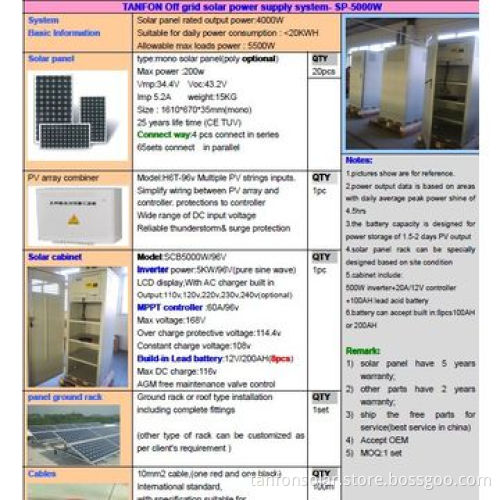

Solar sytem features:

Solar panel (mono or poly panel ): 20pcs*200W
Vmp: 34.4V
Voc: 43.2V
Imp: 5.2A
Weight: 15kg
Size: 1,610*670*35mm
25 years power output guarantee

Simplify wiring between PV array and controller, protections to controller features:

Wide range of DC input voltage reliable thunderstorm & surge protection

Hybird solar inverter:

Inverter power: 5kW/96V
MPPT controller model: 96V/60A
Charging efficiency; 90-95%
LCD display inverter and controller info
With AC charger built-in
Output: 110, 120, 220, 230 and 240V (optional)
Product size: 470*230*560mm
Weight: 49kg

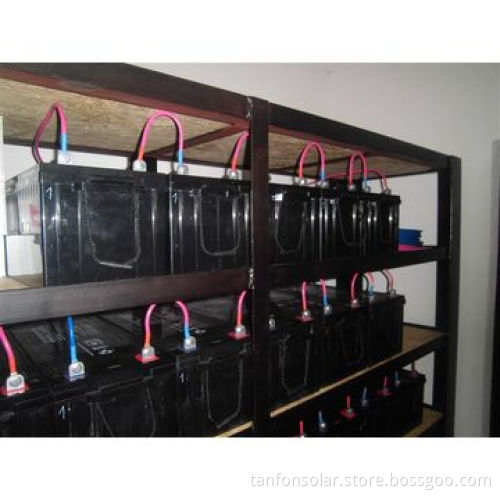

Batter (lead or gel battery)

Capacity: 12V/200Ah full sealed*16pcs
Solar power lead-acid battery
Service life: 5-6 years
Size: 522*238*218mm
Weight: 58kg
Connect way: 8pcs panels in series as a string, 3 strings in parallel

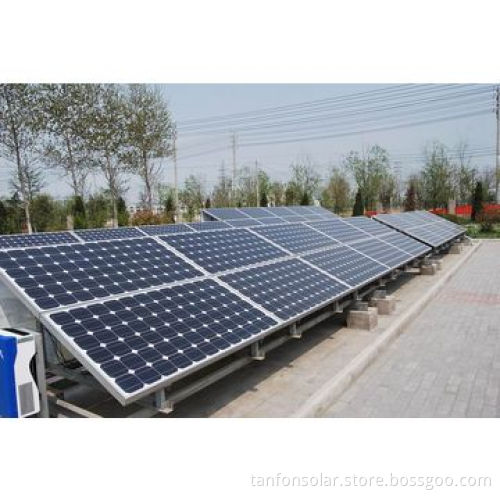

Solar panel rack (ground or roof type)

Ground rack installation

including complete fittings (other type of rack can be customized as per client's requirement, picture in last page)

Cable:

10mm^₂ cables(one red and one black)

International standard, with specification suitable for solar system

Remark:

Price for FOB or CIF
System warranty: panel 5 years, other parts 2 years
Service:during the warranty, ship the free materials for after sales service

Nominal 24V DC for standard output

High efficiency

Outstanding low-light performance

High transmission tempered glass

Rugged design to withstands high wind pressure and snow load, easy installation

Design to meet unique demand of customer

High reliability with guaranteed +/-10% output power tolerance

Tempered glass laminated with aluminum frame

Fromt high-transmission 32mm tempered glass

Back: TPT

Encapsulant: EVA

Living house and home building

Office building, factory and warehouse

Shopping mall, venue, stadium and so on

Power station, field operation and some huge engineer construction

Solar panel (mono or poly panel ): 20pcs*200W

Vmp: 34.4V

Voc: 43.2V

Imp: 5.2A

Weight: 15kg

Size: 1,610*670*35mm

25 years power output guarantee

Wide range of DC input voltage reliable thunderstorm & surge protection

Inverter power: 5kW/96V

MPPT controller model: 96V/60A

Charging efficiency; 90-95%

LCD display inverter and controller info

With AC charger built-in

Output: 110, 120, 220, 230 and 240V (optional)

Product size: 470*230*560mm

Weight: 49kg

Capacity: 12V/200Ah full sealed*16pcs

Solar power lead-acid battery

Service life: 5-6 years

Size: 522*238*218mm

Weight: 58kg

Connect way: 8pcs panels in series as a string, 3 strings in parallel

10mm^₂ cables(one red and one black)

Price for FOB or CIF

System warranty: panel 5 years, other parts 2 years

Service:during the warranty, ship the free materials for after sales service
