8KW 10KW Solar Home Systems for Home Use

8KW 10KW Solar Home Systems for Home Use

Get Latest Price

Payment Type:: T/T, L/C, Western Union or Cash

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C, Western Union or Cash

Product Description

Advantages:

CE, RoHS, TUV approved
High conversion efficiency, high-transmission rate
Energy-saving, environment-friendly
Advanced technology, strict quality control system
Easy installation, safe operation, free maintenance
Low MOQ, fast delivery time, long service life
Quality in priority, clients the up most

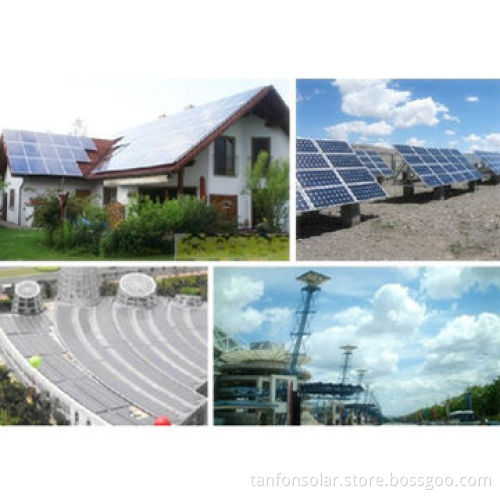

Applications:

Living house and home building
Office building, factory and warehouse
Shopping mall, venue, stadium and more
Power station, field operation and some huge engineerconstruction

Terms and conditions:

MOQ: 1set
Port: FOB FOSHAN
Delivery time: 5-15 days depending on order quantity
10kW solar power system
Solar panel: 200W*40pcs
Type: mono solar panel (poly optional)
Maximum power: 200W
Vmp: 28.8V, Voc: 36.4V
Imp: 8.3A, Weight: 20kg
Size: 1610*670*35mm
25 years life time (CE, TUV)
Connect way: 4pcs panels in series as a string, 10 strings inparallel
PV array combiner
Model: H10T-96v multiple PV strings inputs
Simplify wiring between PV array and controller, protections tocontroller

Features:

Wide range of DC input voltage
Reliable thunderstorm and surge protection
Hybrid solar inverter
Inverter power: 10kW/96V
MPPT controller model: 96V/100A
Charging efficiency: 90-95%

LCD display inverter and controller info:

With AC charger built-in
Output: 110V, 120V, 220V, 230V, 240V (optional)
Product size: 590*470*730mm
Weight: 107kg

Battery:

Capacity: 12V/200Ah full sealed
Solar power lead-acid battery
Service life: 5-6 years
Size: 522*238*218mm
Weight: 58kg
Connect way: 8pcs panels in series as a string, 4 strings inparallel

CE, RoHS, TUV approved

High conversion efficiency, high-transmission rate

Energy-saving, environment-friendly

Advanced technology, strict quality control system

Easy installation, safe operation, free maintenance

Low MOQ, fast delivery time, long service life

Quality in priority, clients the up most

Living house and home building

Office building, factory and warehouse

Shopping mall, venue, stadium and more

Power station, field operation and some huge engineerconstruction

MOQ: 1set

Port: FOB FOSHAN

Delivery time: 5-15 days depending on order quantity

10kW solar power system

Solar panel: 200W*40pcs

Type: mono solar panel (poly optional)

Maximum power: 200W

Vmp: 28.8V, Voc: 36.4V

Imp: 8.3A, Weight: 20kg

Size: 1610*670*35mm

25 years life time (CE, TUV)

Connect way: 4pcs panels in series as a string, 10 strings inparallel

PV array combiner

Model: H10T-96v multiple PV strings inputs

Simplify wiring between PV array and controller, protections tocontroller

Wide range of DC input voltage

Reliable thunderstorm and surge protection

Hybrid solar inverter

Inverter power: 10kW/96V

MPPT controller model: 96V/100A

Charging efficiency: 90-95%

With AC charger built-in

Output: 110V, 120V, 220V, 230V, 240V (optional)

Product size: 590*470*730mm

Weight: 107kg

Capacity: 12V/200Ah full sealed

Solar power lead-acid battery

Service life: 5-6 years

Size: 522*238*218mm

Weight: 58kg

Connect way: 8pcs panels in series as a string, 4 strings inparallel
