10kW solar home system, on- and off-grid with battery backup (single and three phases)

10kW solar home system, on- and off-grid with battery backup (single and three phases)

Get Latest Price

Payment Type:: T/T, L/C, Western Union or Cash

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C, Western Union or Cash

Product Description

More and more homeowners are looking forward to solar power for homes so as to increase energy-efficiency in their homes

Solar power, in addition to cutting out pollution, also provides personal as well as national energy security because it reduces energy bills and any nation’s reliance on imported fuel

When it comes to use solar power for homes, it is not just about installation of solar panels on your roof

It would also mean the upgrading of the water heating system, application of green building design concepts or remodeling the home

These modules have the following positive features:

They require minimal amount of maintenance
They are exceptionally durable
They are designed to last a lifetime

Features:

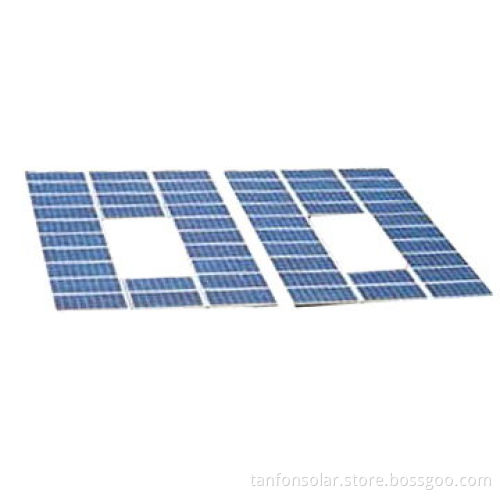

Solar panel (mono or poly panel) 40pcs*200W
- Vmp: 34.4V
- Voc: 43.2V
- Imp: 5.2A
- Weight: 15kg
- Size: 1610*670*35mm
- 25-year power output guarantee
PV array combiner
- H10T-96V multiple PV strings inputs
- Simplify wiring between PV array and controller, protections to controller, features: wide range of DC input voltage reliable thunderstorm and surge protection
Hybrid inverter built-in solar controller
- Inverter power: 10kW/96V
- MPPT controller model: 96V/100A
- Charging efficiency: 90-95%
- LCD display inverter and controller info with AC charger built-in
- Output: 110, 120, 220, 230, 240V (optional)
- Product size: 590*470*730mm
- Weight: 107kg
Batter (lead or gel battery)
- Capacity: 12V/200Ah fully sealed
- Solar power lead-acid battery
- Service life: 5-6 years
- Size: 522*238*218mm
- Weight: 58kg
- Connecting ways: 8pcs panels in series as a string, 4 strings in parallel
Solar panel rack (ground or roof type)
- Ground rack installation
- Including complete fittings (other types of rack can be customized as per client's requirements, picture in last page)
Cable
- 12mm² cables (one red and one black)
- International standard, with specification suitable for solar system

They require minimal amount of maintenance

They are exceptionally durable

They are designed to last a lifetime

Vmp: 34.4V

Voc: 43.2V

Imp: 5.2A

Weight: 15kg

Size: 1610*670*35mm

25-year power output guarantee

H10T-96V multiple PV strings inputs

Simplify wiring between PV array and controller, protections to controller, features: wide range of DC input voltage reliable thunderstorm and surge protection

Inverter power: 10kW/96V

MPPT controller model: 96V/100A

Charging efficiency: 90-95%

LCD display inverter and controller info with AC charger built-in

Output: 110, 120, 220, 230, 240V (optional)

Product size: 590*470*730mm

Weight: 107kg

Capacity: 12V/200Ah fully sealed

Solar power lead-acid battery

Service life: 5-6 years

Size: 522*238*218mm

Weight: 58kg
