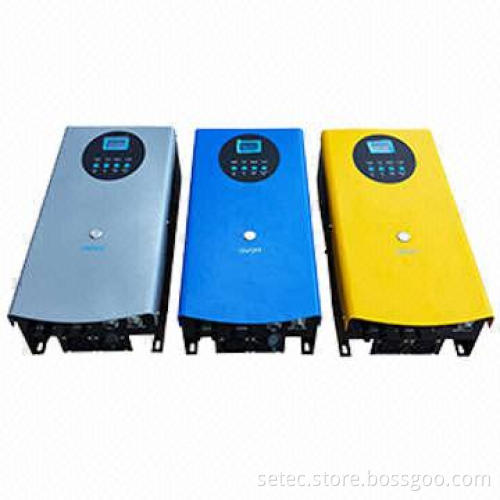

3 Phase 10hp 7.5kW Solar Inverter for AC Pump, IP65, Stainless Steel Design, with MPPT, VFD, GPRS
- Payment Type:
- Telegraphic Transfer in Advance (Advance TT, T/T)
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Payment Type: | Telegraphic Transfer in Advance (Advance TT, T/T) |
|---|
Product Description
Product Description
- Efficiency: >98%
- With VFD, MPPT, GPRS
- Without battery
- Warranty: 2 years
- Material: stainless steel
- Output type: triple
- Type: DC/AC inverters
- Output power: 7.5kW
- Output voltage: 380V
- Input voltage: 450-750V
- Working temperature: from -10 to 50 degrees C
- Output frequency: 0-50/60Hz
- Display: LCD
- The main circuit: IPM (intelligent power module)

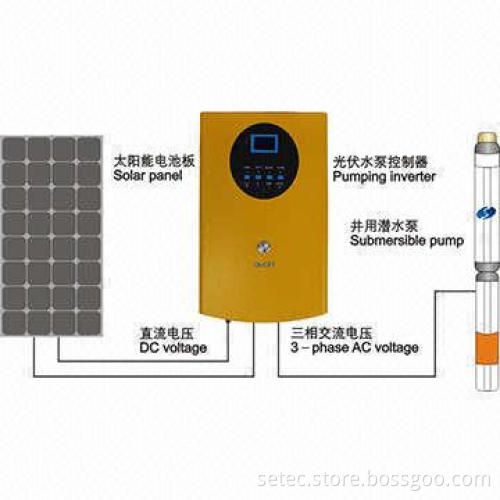

- Water pump is driven by three-phase AC motor
- It adopts dynamic VI maximum power point tracking(MPPT) and optimizes pure sine wave PWM control, with fast response speed, good stability
- Full automatic operation, according to the actual conditions, it can freely set the range of pump speed
- The main circuit uses digital power module,with high reliability, high conversion efficiency of 98%
- Have complete electrical protective function, it can choose water level detection and control circuit, to prevent overflow and dry well
- Protection grade IP65, working environment temperature of -10-+ 50°C
- No need battery (water storage replaces battery power storage)
- Starting box is not required

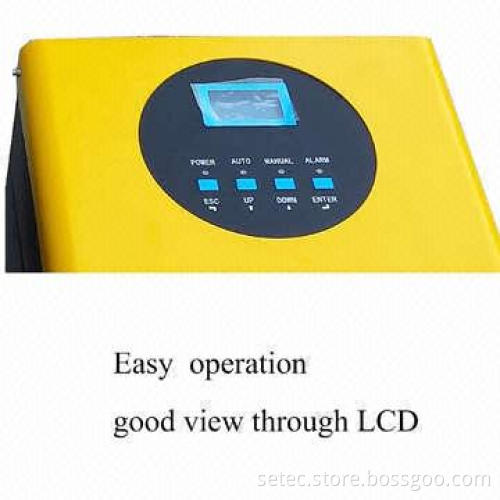

- LCD display, simple operation, setting parameters and fault detection

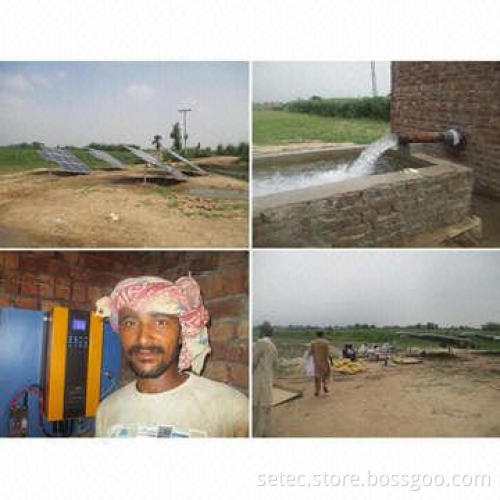

- Residents living water
- Irrigation
- Desert control
- Animal husbandry
- Water apply for sea island
- Livestock watering
- Water treatment projects
