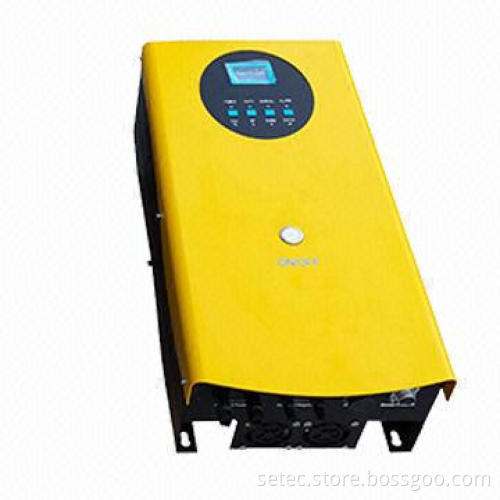

3phase Solar Inverter for Off-grid PV System

3phase Solar Inverter for Off-grid PV System

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Specification:

Efficiency: >98%
With VFD, MPPT and GPRS
Without battery
2-year warranty
Material: stainless steel
Output type: triple
Type: DC/AC inverters
Patented device: low voltage drive device
Output power: 5.5kW
Output voltage: 380V
With MPPT function
Input voltage: 450-750V
Working temperature: from -10 to 50 degrees C
Hi-tech: configured with MPPT, VDF, GPRS etc
Output frequency: 0-50/60Hz
Display: LCD
The main circuit: IPM (Intelligent Power Module)

Product features:

Water pump is driven by three-phase AC motor
It adopts dynamic VI Maximum PowerPoint Tracking (MPPT) and optimizes Pure Sine Wave PWM control, with fast response speed, good stability
Full automatic operation, according to the actual conditions,it can freely set the range of pump speed
The main circuit uses digital power module, with high reliability, high conversion efficiency of 98%
Have complete electrical protective function, it can choose water level detection and control circuit, to prevent overflow and dry well
Protection grade IP41
Working environment temperature: -10 - + 50°C
No need battery (water storage replaces battery power storage)
Starting box is not required
LCD display, simple operation. Setting parameters and fault detection

Product advantages:

LCD display, simple operation
AC drive function. When sunshine is not enough, AC city power is switch to work manually
Low voltage drive function. (LV40-70) converts 39-100 to 280-420V to drive solar pump system
which can reduce the cost of solar panels and prevent the danger of DC high voltage

Applications includes:

Residents living water
Irrigation
Desert control
Animal husbandry
Water apply for sea island
Livestock watering
Water treatment projects

Efficiency: >98%

With VFD, MPPT and GPRS

Without battery

2-year warranty

Material: stainless steel

Output type: triple

Type: DC/AC inverters

Patented device: low voltage drive device

Output power: 5.5kW

Output voltage: 380V

With MPPT function

Input voltage: 450-750V

Working temperature: from -10 to 50 degrees C

Hi-tech: configured with MPPT, VDF, GPRS etc

Output frequency: 0-50/60Hz

Display: LCD

The main circuit: IPM (Intelligent Power Module)

Water pump is driven by three-phase AC motor

It adopts dynamic VI Maximum PowerPoint Tracking (MPPT) and optimizes Pure Sine Wave PWM control, with fast response speed, good stability

Full automatic operation, according to the actual conditions,it can freely set the range of pump speed

The main circuit uses digital power module, with high reliability, high conversion efficiency of 98%

Have complete electrical protective function, it can choose water level detection and control circuit, to prevent overflow and dry well

Protection grade IP41

Working environment temperature: -10 - + 50°C

No need battery (water storage replaces battery power storage)

Starting box is not required

LCD display, simple operation. Setting parameters and fault detection

LCD display, simple operation

AC drive function. When sunshine is not enough, AC city power is switch to work manually

Low voltage drive function. (LV40-70) converts 39-100 to 280-420V to drive solar pump system

which can reduce the cost of solar panels and prevent the danger of DC high voltage

Residents living water

Irrigation

Desert control

Animal husbandry

Water apply for sea island

Livestock watering

Water treatment projects
