Conductive film hole punching machine
- Payment Type:
- Telegraphic Transfer in Advance (Advance TT, T/T)
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Payment Type: | Telegraphic Transfer in Advance (Advance TT, T/T) |
|---|
Product Description
Product Description

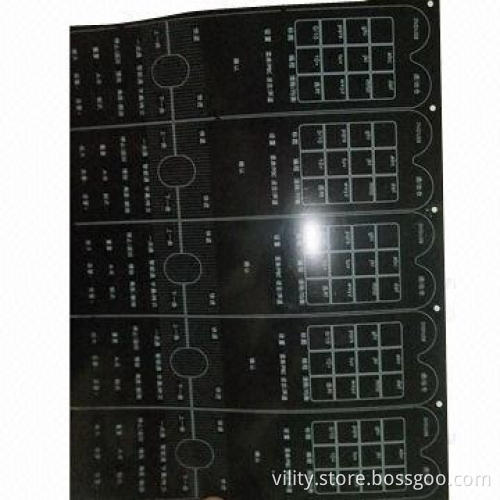

- Target materials: FPC, PCB and films
- Maximum work size: (W) 400 x (D) 300mm
- Minimum work size: (W) 180 x (D) 200mm
- Thickness of work piece: decide by material and punching hole diameter
- Punching accuracy: ±0.02mm (By DEYI model)
- Punching diameter: (D)1.0 to 4.0mm
- Punching speed: 0.38 seconds/hole (By DEYI model)
- Driving mode: pneumatic drive
- Installation: upper die fixed, lower die movable and rubber returned material
- Clamping: 4 point clamp + XY tension control mechanism
- Retainer plate move mode: pneumatic drive up and down
- Tension holding support: adjust by the workpiece size X axial ment and handle lock
- Operating system: Windows XP
- Display: 17-inch TFT LCD (4/3)
- Working procedure: intellectual property control software of Deyi
- Operating data: based on physical study for manual operating
- Camera: 600 line third of an inch CCD
- Vision range: 7 x 5.4mm
- Processing methods: grayscale model measurement
- Lighting system: high brightness LED colorful transmission and reflection
- Temperature: 20 to 30°C
- Humidity: 40 to 60% (not dewing)
