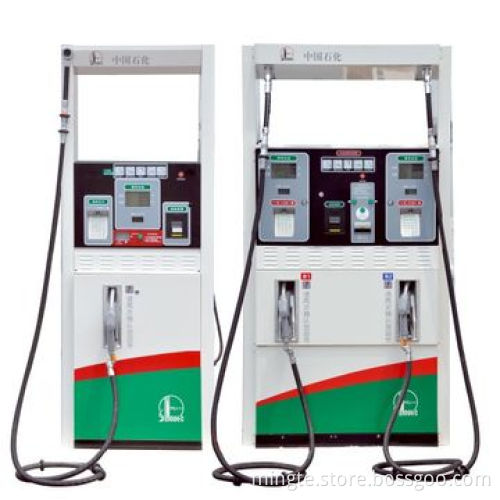

POS system with pin pad for oiling machine and kiosk, read/write of IC card, RF can be customized

POS system with pin pad for oiling machine and kiosk, read/write of IC card, RF can be customized

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

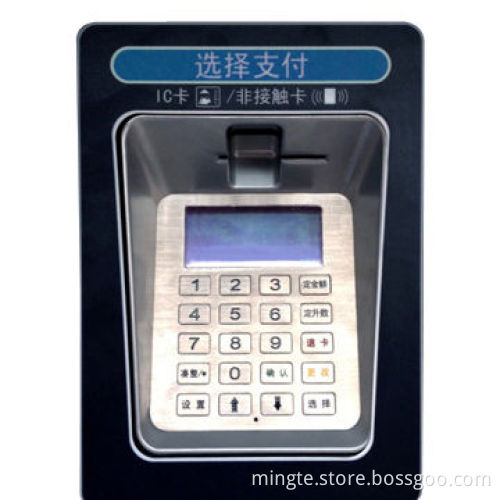

MT800/ industrial self-service payment terminal

Safe

Convenient

Intelligent

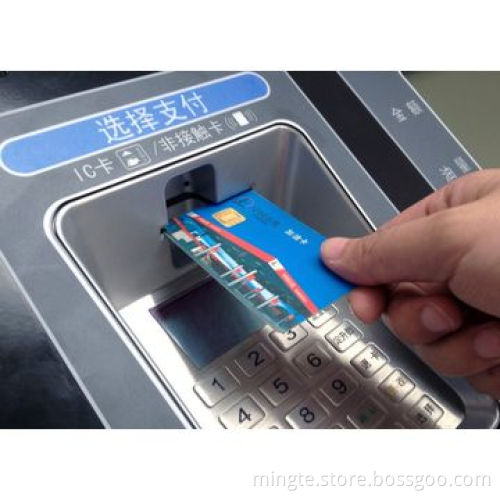

MT800 is one payment module for kiosks and other card payment terminals, can read and write of smart cards, like IC bank cards or credit cards, with metal panel to input amount and password, safe and convenient to pay

Technical specifications and parameters:

CPU: high-performance 32-bit CPU
Memory: large capacity storage, scalable memory
Display: 128*64 lattice LCD, white backlight, white letters on blue background
Keyboard: PED metal secure password keyboard, 20 number/letter keys, can be extended function keys, grease-proof, dustproof, waterproof
SAM card reader: four SAM cards identification for security
Motor card readers: supports 1.8, 3, 5V cards, CPU cards, magnetic stripe cards
Communication mode: supports serial port communication
Physical interface: 2 RS232 and 1 DC power interface
Language shows: English/Chinese or customized
Certifications: PBOC L1, PBOC L2 and CCC
Environment:
- Working temperature: -10 to 55°C
- Storage temperature: -40 to 75°C
- Working humidity: 0 to 90%
- Storage humidity: ≤90%
Power supply:
- Supply voltage: DC 12V
- Maximum current: 2.0A (maximum 12V)
Dimensions: 280*180*80mm
