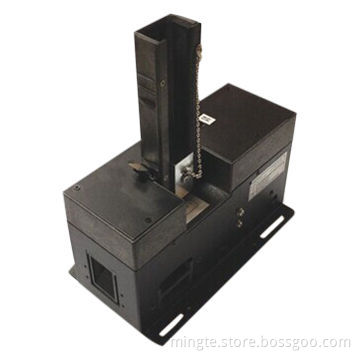

Card Collector for Parking Management System, High-way System, 24V, 0-90% RH Humidity
  • Card Collector for Parking Management System, High-way System, 24V, 0-90% RH Humidity
  • Card Collector for Parking Management System, High-way System, 24V, 0-90% RH Humidity
Card Collector for Parking Management System, High-way System, 24V, 0-90% RH Humidity
Card Collector for Parking Management System, High-way System, 24V, 0-90% RH Humidity

Card Collector for Parking Management System, High-way System, 24V, 0-90% RH Humidity

Get Latest Price
Payment Type:
Telegraphic Transfer (TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer (TT,T/T)
Product Description
Product Description
  • Functions and features:
    • Motor card collection
    • Communication interface: RS-232/TTL
    • Automatic recycling of faulty cards
    • Manual insert card and automatic collect card into card storage box
    • Expandable card capacity
  • Specifications:
    • Dimensions: 54 x 86 x 0.2-2.0mm
    • Loading capacity: limitless
    • Working lifespan: >800,000 times of operating
    • Working voltage: 24V DC ±20%
    • Maximum current: 2.0A
    • Weight: about 2.0kg
    • Operating temperatures:
      • Indoor model: -10 to 60°C
      • Outdoor model: -30 to 60°C
    • Storage temperatures: -40 to 65°C
    • Relative humidity range: 0-90% RH
  • Applicable fields:

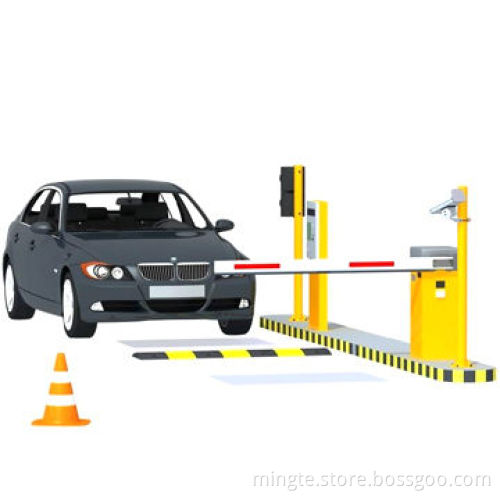

    • Parking management systems
    • Automatic card vending machine and ticket vending machines
    • Highway card dispenser systems
    • Centralized card dispensing
  • Motor card collection
  • Communication interface: RS-232/TTL
  • Automatic recycling of faulty cards
  • Manual insert card and automatic collect card into card storage box
  • Expandable card capacity
  • Dimensions: 54 x 86 x 0.2-2.0mm
  • Loading capacity: limitless
  • Working lifespan: >800,000 times of operating
  • Working voltage: 24V DC ±20%
  • Maximum current: 2.0A
  • Weight: about 2.0kg
  • Operating temperatures:
    • Indoor model: -10 to 60°C
    • Outdoor model: -30 to 60°C
  • Storage temperatures: -40 to 65°C
  • Relative humidity range: 0-90% RH
  • Indoor model: -10 to 60°C
  • Outdoor model: -30 to 60°C
  • Parking management systems
  • Automatic card vending machine and ticket vending machines
  • Highway card dispenser systems
  • Centralized card dispensing
