Manual insertion magnetic stripe card reader, Read/write of IC/ RF card, read of magnetic card
  • Manual insertion magnetic stripe card reader, Read/write of IC/ RF card, read of magnetic card
  • Manual insertion magnetic stripe card reader, Read/write of IC/ RF card, read of magnetic card
  • Manual insertion magnetic stripe card reader, Read/write of IC/ RF card, read of magnetic card
Manual insertion magnetic stripe card reader, Read/write of IC/ RF card, read of magnetic card
Manual insertion magnetic stripe card reader, Read/write of IC/ RF card, read of magnetic card
Manual insertion magnetic stripe card reader, Read/write of IC/ RF card, read of magnetic card

Manual insertion magnetic stripe card reader, Read/write of IC/ RF card, read of magnetic card

Payment Type:
Telegraphic Transfer (TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer (TT,T/T)
Product Description
Product Description

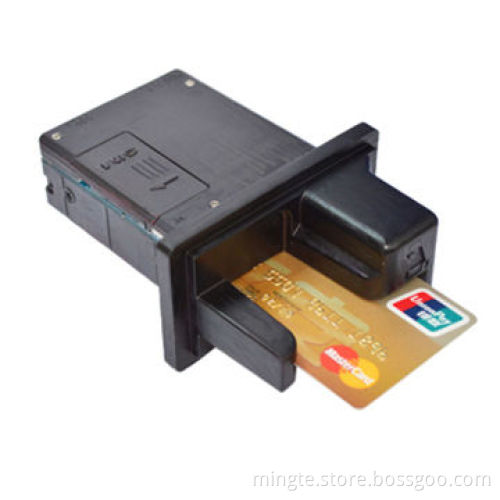

  • This product is an integrated circuit card reading/writing equipment, manual insert, eject card, can operate RF cards, IC cards, magnetic cards, support PSAM card, Safe and reliable, there are several card slot to choose, this card reader can be adapted to suit various magnetic card payment and recognition system, It is widely used in bank card payment terminal equipments, such as metro ticketing system, Visa/MasterCard self-service shopping system, petrol dispenser payment system, and other kiosks
  •  Application fields:
    •  Self-service kiosk
    • Self-service gas station
    • Metro and transportation ticketing system
    • Self-service telecom payment system
  • Technical features:
    • Read and write of contact IC cards, RF cards, magnetic stripe cards
    • The product has strong anti destructive, excellent insulation (main material PC+15%G)
    • Magnetic head selection flexible, can be customized as one or two magnetic head
    • Modularization designed, safe and reliable
  • Performance indexes:
    • Mechanical properties
    • Electrical properties
    • Card insert/eject force:  <10N
    • Working voltage:  5V±5%
    • Working life:  >5X105
    • Communication mode:  RS232 or USB
    • Number of contacts:  8
    • quiescent current:  ≤50mA
    • Contact position:  ISO7816-2
    • Maximum current:  ≤60mA
    • Contact force:  0.2-0.6N/point
    • Switch resistance:  ≤150mΩ
    • Card position switch:  Keep contactless
    • Insulation resistance:  ≥150MΩ
  •  Self-service kiosk
  • Self-service gas station
  • Metro and transportation ticketing system
  • Self-service telecom payment system
  • Read and write of contact IC cards, RF cards, magnetic stripe cards
  • The product has strong anti destructive, excellent insulation (main material PC+15%G)
  • Magnetic head selection flexible, can be customized as one or two magnetic head
  • Modularization designed, safe and reliable
  • Mechanical properties
  • Electrical properties
  • Card insert/eject force:  <10N
  • Working voltage:  5V±5%
  • Working life:  >5X105
  • Communication mode:  RS232 or USB
  • Number of contacts:  8
  • quiescent current:  ≤50mA
  • Contact position:  ISO7816-2
  • Maximum current:  ≤60mA
  • Contact force:  0.2-0.6N/point
  • Switch resistance:  ≤150mΩ
  • Card position switch:  Keep contactless
  • Insulation resistance:  ≥150MΩ
