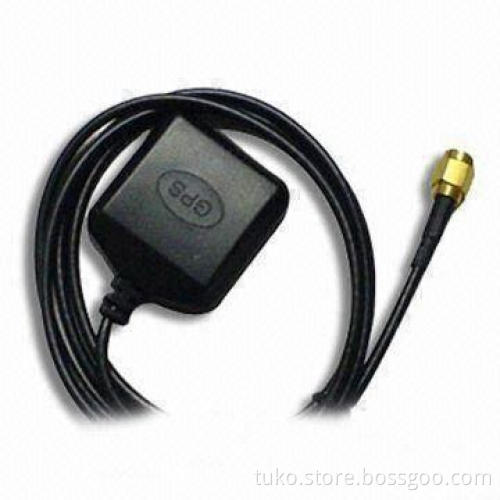

GPS Active Antenna with 50ohm Impedance and Low Noise Amplifier

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	L/C, T/T, Western Union, MoneyGram or PayPal

Product Description

Key specification/special features:

Dielectric antenna:
- Center frequency: 1575.42± 3MHz
- VSWR: 1.5:1
- Impedance: 50Ω
- Polarization type: RHCP
- Peak gain: >3dBic based on 7 x 7cm ground plane
- Gain coverage: >-4dbic at -90<0<+90 (over 75% volume)

LNA/filter:

Mechanical:

Environmental:

Dielectric antenna:

Center frequency: 1575.42± 3MHz

VSWR: 1.5:1

Impedance: 50Ω

Polarization type: RHCP

Peak gain: >3dBic based on 7 x 7cm ground plane

Gain coverage: >-4dbic at -90<0<+90 (over 75% volume)

LNA gain (without cable): 28dB typical

Noise figure: 1.5dB

Filter out band attenuation (f0 = 1575.42MHz)

7dB minimum: f0 20MHz

20dB minimum: f0 50MHz

30dB minimum: f0 100MHz

VSWR: <2.0

DC voltage: 3.0 to 5.0V/other

DC current: 5/10mAh maximum

Weight: <110g

Dimension: 39 x 33 x 14mm

Cable: RG174 5 or 3m

Connectors: SMA, SMB, SMC, MCX, and MMCX, or others

Working temperature: -40 to 85°C

Humidity: 55 to 75% RH

Vibration sine sweep: 1g (0-p) 10 to 50 to 10Hz each axis
