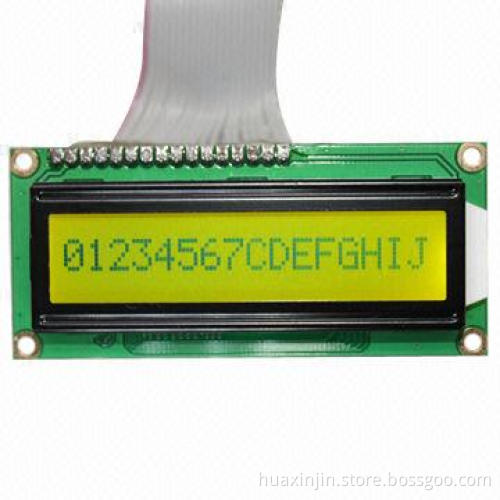

16x1 Character LCD Module

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, PayPal, Western Union

Product Description

Features:

Mechanical specification:

Display type: 16 characters x 1 lines

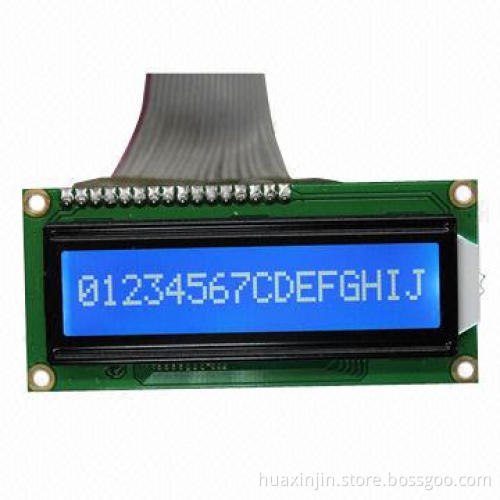

LCD type: STN, negative (blue), transmissive

Driver condition: 1/16duty, 1/5Bias

Viewing direction: 6 O'clock

Backlight type: side white

Interface: 8-bit MPU interface

Driver IC: SPLC780D

Outline dimension (L x W x T): 80 x 36 x maximum 11.3mm

Viewing area (L x W): 64.5 x 14.5mm

Dot size (W x H): 0.61 x 0.71mm

Dot pitch (W x H): 0.65 x 0.75mm

Character size (W x H): 3.21 x 5.96mm

Outline dimension (L x W x T): 40 x 35.2 x (maximum) 7.8mm

Viewing area (L x W): 30.5 x 14mm

Dot size (W x H): 0.5 x 0.5mm

Dot pitch (W x H): 0.57 x 0.57mm

Character size (W x H): 2.78 x 4.49mm
