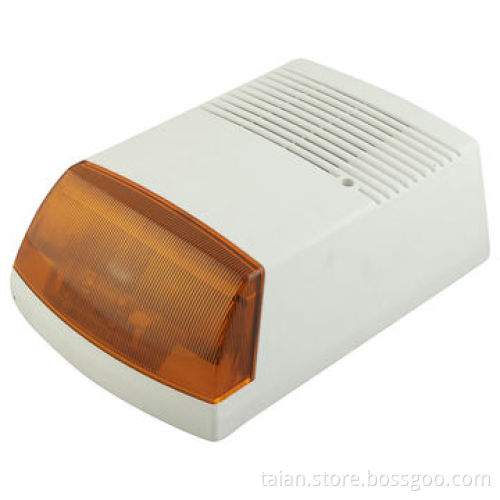

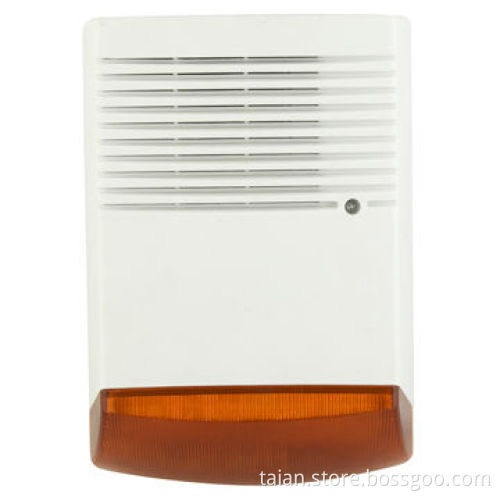

High-power Siren with Flashlight Alarm Horn

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, Western Union, PayPal, MoneyGram

Product Description

TA-V6A is a new generation of professional high power acoustic siren with battery back-up and flashlight

Includes all performance and reliability for security alarm system

Features:

Outdoor battery back-up siren with flashlight
Double housing: external 3mm plastic PC with UV, internal 0.88mm metal
Continuous frequency modulated sound
Tamper protection in 3 ways screw or cover opening or tearing housing from the wall
Positive and negative alarm trigger input
Siren period can set as follow trigger or 3min cutoff
Select from the lamp or xenon
Alarm by main power failure
Protects against totally battery discharge
Plug terminal for easy installation
Environmental immunity

Specifications:

SPL: 128dB
Fundamental frequency: 1850Hz
Siren tone: yelp
Frequency range: 1300-2400Hz
flashlight: lamp 12V DC/5W
Power supply voltage: 13.8-14.2V DC
Charge current limit: 250mA
Current consumption (speaker and strobe):
- Standby: 8mA alarm, 1600mA at 13.8V DC
Maximum power: 50W (peak)
Trigger level: trigger low, maximum 1V DC
Trigger: high: minimum: 9V DC
Siren alarm period: F.T-follow trigger
Input impedance (alarm/flash/trigger): 1KΩ
Tamper switch: NC 28V DC maximum current 0.1A, open when cover is removed
Backup battery: rechargeable lead acid battery 12V DC up to 1.2Ah
Low battery level: 8V DC ±0.3V DC
Material: external box ABS (3mm thickness)
Internal cover: metal (0.8mm thickness)
Dimensions of unit: 270*193*100mm
Weight (without battery): 1.85kg
Operating temperature range: -30-60°C
Case protection level: water splash resistant
Plastic PC with UV protection
Conformal coated circuit board
