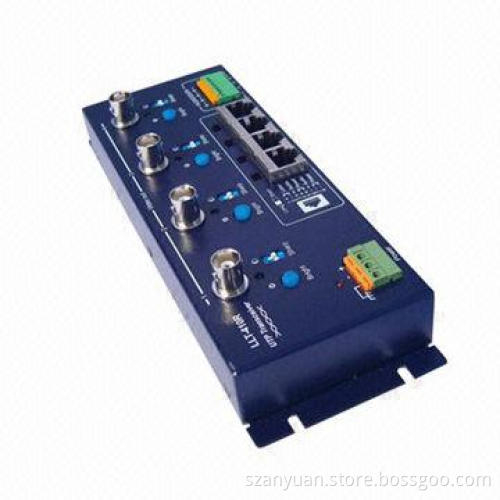

RJ45 UTP Port Video Balun with Four-channel Active Video, Audio, Power, Data, PVD Receiver

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T in Advance

Product Description

Features: four-channel active video/audio/power receiver

This device is capable of receiving video, audio and power DC12V over UTP cable

Spec: 4CH active video/date/power

Power-Video-Data (PVD) transceiver

Video:

Power: 17V DC

Impedance: coax, male BNC: 75© UTP (screwless) terminalblock or UTP RJ45 data connector: 100©

Wire type: one unshielded twisted pair 24 to 16AWG (0.5 to1.31mm) per video signal

DC loop resistance 52Ω per 1,000 ft (18© per100m)

Surge suppression: 6000V 1.2¼ S x 5¼ S

Control: brightness/range

UTP port: RJ45 AND terminal block

Dimensions: 200 x 70 x 38mm

Weight: 390g

Environment temperature: -10 to 50°C

Humidity: 0 to 95%

Frequency response: DC-6MHz common-mode/differential-mode

Rejection: 15KHz, 6MHz 60dB type

Audio/data: yes, audio 14dB
