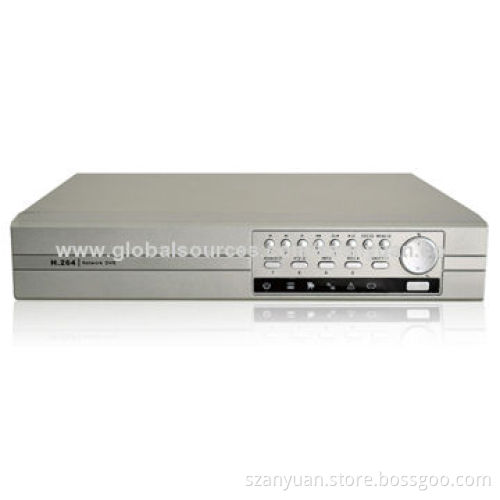

4CH CCTV Standalone DVR, Full D1 Real-time Recording with Alarm, Audio, 3G Mobile Surveillance

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Video compression format: H.264

Video system: NTSC/PAL

Video input/output (BNC): 4CH BNC input/1CH BNC output

Audio input/output: 1CH audio input, 1CH audio output (RCA)

Maximum recording rate (each channel supports at D1 real-time):

Hard disk storage: supports one SATA HDD, unlimited for the capacity

Alarm input/output: not supported

Backup device: USB flash disk/USB remove HDD/network

Pre-alarm recording: recording for 10 seconds before alarming

Network protocols: TCP/IP, PPPoE, DDNS, FTP, UPNP, ARSP, NTP

Ethernet remote view: supports remote surveillance up to 10 users simultaneously

VGA interface: supported, VGA, BNC can work at the same time

Log record function: supported

Video loss detection: supported

Video adjustable: hue/saturation/contrast/brightness can adjust

PTZ control: supported

IR remote control/USB mouse: supported

Power source: 12V DC

Size (W x H x D): 260 x 45 x 234mm

GUI OSD interface, more intuitive, easy to use for user-friendly

Supports 4CH full D1 real-time recording resolution, ahead to D1 high-definition period

Dual stream design, network remote view effects, local recording effects parameters can be set separately, independently of each other

Supports multiple channel playback (supports 4CH playback simultaneously, each channel can be enlarged to full screen)

Supports network function: one IE browser centralized monitoring, CMS software for multiple DVR (up to 255 DVR simultaneously)

Supports mobile phone remote view by Symbian, Microsoft's Windows mobile, Google's Android, iPhone, RIM's BlackBerry

Supports alarm triggered recording will send alerts matter to the designated E-mail

System auto-recovery to power after power is reconnected

D1: 704 x 480 pixels with 120IPS/704 x 576 pixels with 100IPS

HD1: 704 x 240 pixels with 120IPS/704 x 288 pixels with 100IPS

CIF: 352 x 240 pixels with 120IPS/352 x 288 pixels with 100IPS

QCIF: 176 x 120 pixels with 120IPS/176 x 144 pixels with 100IPS
