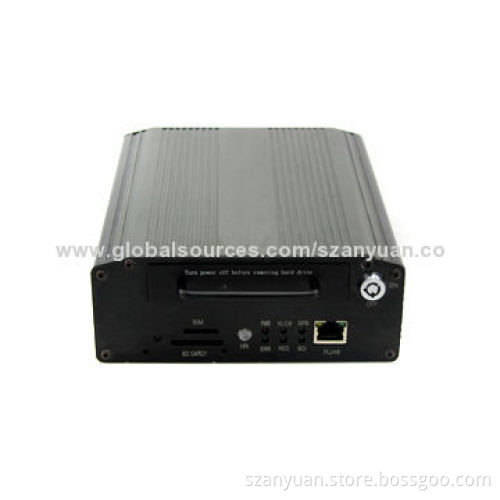

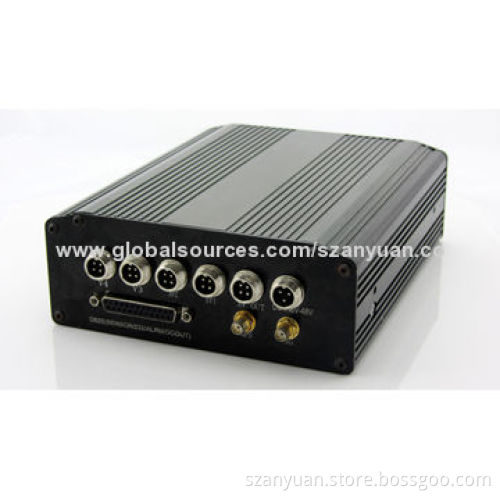

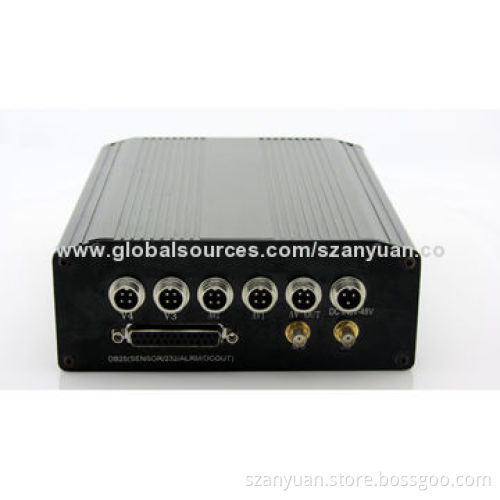

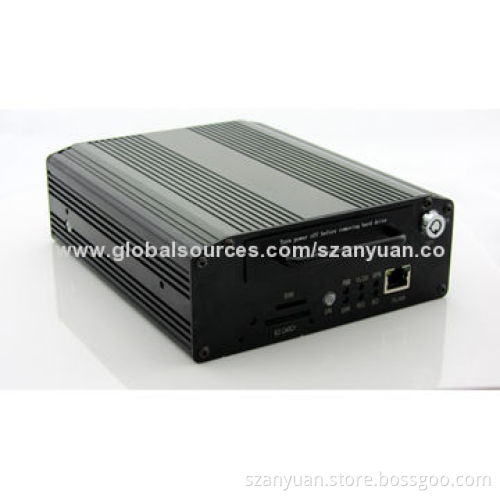

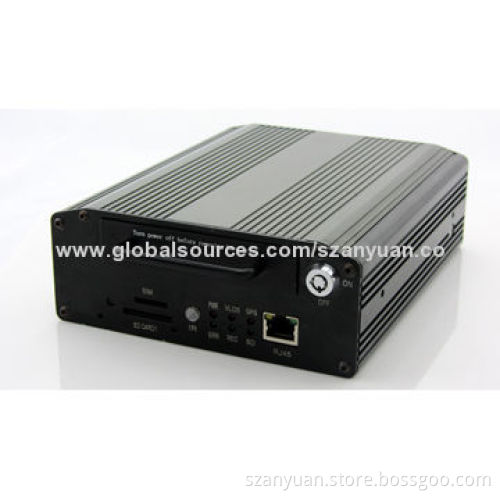

Mobile DVR, Supports 4 Video/2 Audio Input, both 2.5 inch HDD and 64G SD card storage

Mobile DVR, Supports 4 Video/2 Audio Input, both 2.5 inch HDD and 64G SD card storage

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Operation languages: English/Chinese/Traditional Chinese/other

Equipment parameters: graphical menu interface (OSD menu)

Password security: two-level management of user password and administrator password

Video input: 4CH composite video input

Video output: 1CH composite video output

Video display: single-picture and quad-picture display

Video standard: PAL/NTSC

Image compression: H.264 main profile, compressed resource, 25 frames D1/s (300 frames, CIF/s)

Audio input: 4CH audio input

Audio output: 1CH audio output

Recording manner: synchronous recording of audio and video

Image format: CIF/HD1/D1, optional

Video streaming standard: ISO 14496-10

Video bit rates:

CIF: 384Kbps (low), 512Kbps (medium), 768Kbps (high)
HD1: 512Kbps (low), 768Kbps (medium), 1024Kbps (high)
D1: 512Kbps (low), 768Kbps (medium), 1024Kbps (high)

Audio bit rate: 8KB/s

Data storage: supported 64GB SD card/2T hard disk

Alarm input: 4 alarm inputs, low-level alarm for less than 4V, high-level alarm for more than 4V

Alarm output: 1 alarm outputs, high-level output at 12V and 5V

RS485 interface: supported 1 RS485 interface

RS232 interface: supported 1 RS232 interface

Acceleration sensor: built-in acceleration G-sensor

Software kit: play back the video file on PC and analyze the vehicle information in the file

Software upgrade: file via SD

Power input: 6-48V, input voltage between +6V and +48V, when the voltage is lower than 6V or higher than 48V for a long period of time, the equipment will shut down automatically and enter into protected mode

Power output: 12V, output voltage 12V (+/-0.2V), maximum current 2A

Car key signal ≤4V: car key on, ≥5V car key off

Video input resistance: 75Ω, video input resistance at each channel should be 75Ω

Video output voltage: 2Vp-p, for output of a 2Vp-p CVBS analog signal, the displayed input resistance shall be 75Ω

I/O interfaces: 0-4V low-level alarm

Over 4V: high-level alarm

CIF: 384Kbps (low), 512Kbps (medium), 768Kbps (high)

HD1: 512Kbps (low), 768Kbps (medium), 1024Kbps (high)

D1: 512Kbps (low), 768Kbps (medium), 1024Kbps (high)
