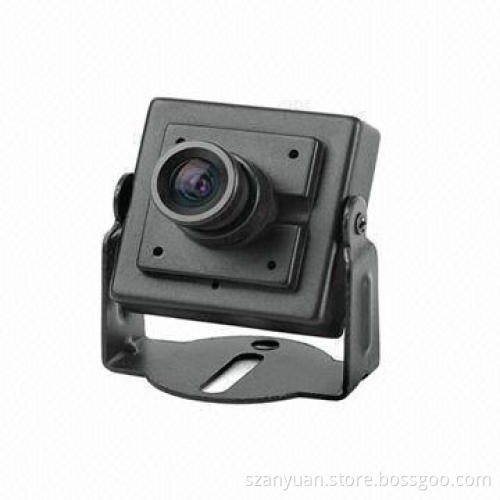

Miniature Camera with 12V DC Voltage, Suitable for Installation in Lift and Corridor
  • Miniature Camera with 12V DC Voltage, Suitable for Installation in Lift and Corridor
Miniature Camera with 12V DC Voltage, Suitable for Installation in Lift and Corridor

Miniature Camera with 12V DC Voltage, Suitable for Installation in Lift and Corridor

Get Latest Price
Payment Type:
Telegraphic Transfer in Advance (Advance TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer in Advance (Advance TT, T/T)
Product Description
Product Description
  • Specifications:
    • Cable built-in bracket design
    • AL casing, strong and beautiful
    • Suitable for installation in lift and corridor
    • CCD type: 1/3-inch Sony CCD
    • Resolution:
      • PAL: 795 x 596 pixels
      • NTSC: 811 x 508 pixels
    • Horizontal resolution: 540TVL
    • Scanning system: PAL/NTSC
    • Level synchronization frequency:
      • PAL: 15.625kHz
      • NTSC: 15.734kHz
    • Clock frequency: PAL 19.3125/NISC 19.0699
    • Scanning system: 2:1 de-interlacing
    • Minimum illumination: 0.1 Lux (infrared light to open)
    • Synchronization system
    • S/N ratio: 48dB
    • Electronic shutter speed:
      • PAL: 1/50 to 1/100,000 seconds
      • NTSC: 1/60 to 1/100,000 seconds
    • Gamma correction: 0.45
    • Video output: 1Vpp, 75©
    • AGC: auto
    • Night vision: not supported
    • Power supply: 12V DC (±10%)
    • Current: 400mA
    • Operating temperature: -10 to 45°C
    • Dimensions (L x W x H): 96 x 96 x 63mm
    • Weight: 0.11kg
  • Packing carton dimensions (L x W x H): 590 x 360 x 200mm
  • Cable built-in bracket design
  • AL casing, strong and beautiful
  • Suitable for installation in lift and corridor
  • CCD type: 1/3-inch Sony CCD
  • Resolution:
    • PAL: 795 x 596 pixels
    • NTSC: 811 x 508 pixels
  • Horizontal resolution: 540TVL
  • Scanning system: PAL/NTSC
  • Level synchronization frequency:
    • PAL: 15.625kHz
    • NTSC: 15.734kHz
  • Clock frequency: PAL 19.3125/NISC 19.0699
  • Scanning system: 2:1 de-interlacing
  • Minimum illumination: 0.1 Lux (infrared light to open)
  • Synchronization system
  • S/N ratio: 48dB
  • Electronic shutter speed:
    • PAL: 1/50 to 1/100,000 seconds
    • NTSC: 1/60 to 1/100,000 seconds
  • Gamma correction: 0.45
  • Video output: 1Vpp, 75©
  • AGC: auto
  • Night vision: not supported
  • Power supply: 12V DC (±10%)
  • Current: 400mA
  • Operating temperature: -10 to 45°C
  • Dimensions (L x W x H): 96 x 96 x 63mm
  • Weight: 0.11kg
  • PAL: 795 x 596 pixels
  • NTSC: 811 x 508 pixels
  • PAL: 15.625kHz
  • NTSC: 15.734kHz
  • PAL: 1/50 to 1/100,000 seconds
  • NTSC: 1/60 to 1/100,000 seconds
