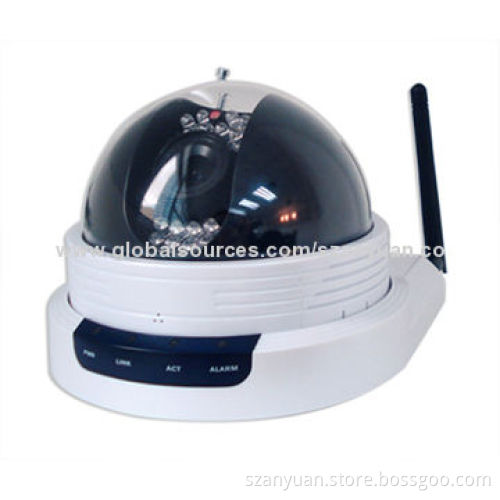

720P 2.0-megapixel IR IP Dome Camera, Supports Wi-Fi, 3G Mobile Surveillance and IR-cut

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Image sensor: 1/3-inch 2.0MP progressive CMOS

Minimum illumination: 1 lux

IR parameter: 16 IR lamps

IR irradiation distance: 12m

Supports IR-cut

Processor: Hi3512

With 6/8/12mm fixed focus lens

Video compression: H.264 main profile at level 3.0/M-JPEG

Supports dual streaming

Video resolutions:

Primary stream: 1,600 x 1,200/1,280 x 960/1,280 x 720 pixels
Secondary stream: 800 x 600/400 x 288/192 x 144 pixels

Video frame rate:

Main video stream: 1 to 15fps (1,600 x 1,200 pixels), 1 to 25fps (other resolution)
Secondary video stream: 1 to 25fps

Video bit rate: 32Kbps to 16Mbps

Audio compression: G.726

Talk back input: 1CH microphone output

Audio output: 1CH linear output

Title OSD: supports channel name/date/video stream information overlay, adjustable OSD location

SD card interface: supports video storage and image snapping, 32GB SD2.0 standard

Control interface: RS485

Alarm output: 1CH on/off, 120V AC/1A, 24V DC/1A

Supports e-mail based alert

RTSP protocols: can view live video by VLC player

FTP protocols: auto upload images to a FTP server

Mobile monitor: supports smart mobile phones based on Windows Mobile 6, Symbian V3/V5 and iPhone

Wireless: Wi-Fi 802.11b/g protocol, 2.4GHz, maximum wireless distance can be 100m

Wireless encryption protocol: WEP/WPA/WPA2

3G network: CDMA2000/WCDMA module

Input power: 12V DC/1.0A or 12V DC/3.0A

Power consumption: 7 to 10W

Dimensions: 164 x 137 x 105mm

Up to 30fps in 720 x 480 pixels resolutions

Up to 10 viewers can directly access camera simultaneously

Alarm recording: video lost, motion detection and sensor alarm

Protocols: RTSP, RTP, HTTP, TCP/IP, UDP, SMTP, PPPoE, DDNS, DNS, SNTP, DHCP, FTP, SNMP

Provides RS485/RS232 serial port with built-in high-speed domes and decoder protocol

Primary stream: 1,600 x 1,200/1,280 x 960/1,280 x 720 pixels

Secondary stream: 800 x 600/400 x 288/192 x 144 pixels

Main video stream: 1 to 15fps (1,600 x 1,200 pixels), 1 to 25fps (other resolution)

Secondary video stream: 1 to 25fps
