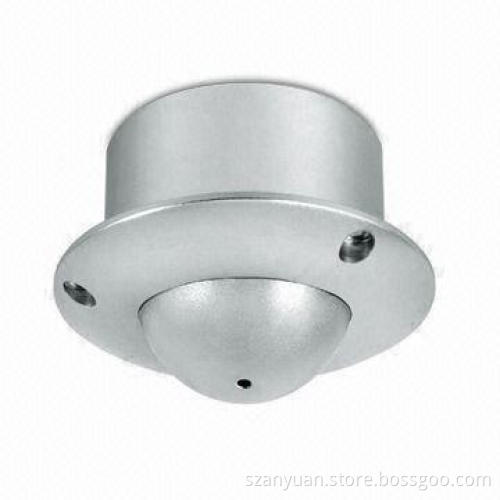

Hidden Camera with 1/3-inch Sony CCD Sensor, 0.01Lux Illumination and 12V DC Power Supply
  • Hidden Camera with 1/3-inch Sony CCD Sensor, 0.01Lux Illumination and 12V DC Power Supply
Hidden Camera with 1/3-inch Sony CCD Sensor, 0.01Lux Illumination and 12V DC Power Supply

Hidden Camera with 1/3-inch Sony CCD Sensor, 0.01Lux Illumination and 12V DC Power Supply

Get Latest Price
Payment Type:
Telegraphic Transfer in Advance (Advance TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer in Advance (Advance TT, T/T)
Product Description
Product Description
  • Features:
    • UFO camera
    • Aluminum casing
    • Standard match with 3.7mm pinhole lens
    • Suitable for hidden installation in lift and corridor
  • Specifications:
    • CCD type: 1/3-inch Sony
    • Pixels:
      • PAL: 795 x 596
      • NTSC: 811 x 508
    • Horizontal resolution: 420, 480 and 520TV lines
    • Scanning system: PAL and NTSC
    • Level synchronization frequency:
      • PAL: 15.625kHz
      • NTSC: 15.734kHz
    • Clock frequency:
      • PAL: 19.3125
      • NTSC: 19.0699
    • Scanning system: 2:1 de-interlacing
    • Minimum illumination: 0.1Lux (Infrared light to open)
    • Sync system: synchronization
    • S/N ratio: 48dB
    • Electronic shutter speed:
      • PAL: 1/50 to 1/100,000 seconds
      • NTSC: 1/60 to 1/100,000 seconds
    • Gamma correction: 0.45
    • Video output: 1Vp-p, 75Ω
    • AGC: auto
    • Night vision: no
    • Power supply: 12V DC (±10%)
    • Current: 400mA
    • With no LED
    • Operating temperature: -10 to 45°C
    • Dimension: 96 x 96 x 63mm
    • Weight: 0.11kg
  • Packing:
    • Carton size: 590 x 360 x 200mm
  • UFO camera
  • Aluminum casing
  • Standard match with 3.7mm pinhole lens
  • Suitable for hidden installation in lift and corridor
  • CCD type: 1/3-inch Sony
  • Pixels:
    • PAL: 795 x 596
    • NTSC: 811 x 508
  • Horizontal resolution: 420, 480 and 520TV lines
  • Scanning system: PAL and NTSC
  • Level synchronization frequency:
    • PAL: 15.625kHz
    • NTSC: 15.734kHz
  • Clock frequency:
    • PAL: 19.3125
    • NTSC: 19.0699
  • Scanning system: 2:1 de-interlacing
  • Minimum illumination: 0.1Lux (Infrared light to open)
  • Sync system: synchronization
  • S/N ratio: 48dB
  • Electronic shutter speed:
    • PAL: 1/50 to 1/100,000 seconds
    • NTSC: 1/60 to 1/100,000 seconds
  • Gamma correction: 0.45
  • Video output: 1Vp-p, 75Ω
  • AGC: auto
  • Night vision: no
  • Power supply: 12V DC (±10%)
  • Current: 400mA
  • With no LED
  • Operating temperature: -10 to 45°C
  • Dimension: 96 x 96 x 63mm
  • Weight: 0.11kg
  • PAL: 795 x 596
  • NTSC: 811 x 508
  • PAL: 15.625kHz
  • NTSC: 15.734kHz
  • PAL: 19.3125
  • NTSC: 19.0699
  • PAL: 1/50 to 1/100,000 seconds
  • NTSC: 1/60 to 1/100,000 seconds
  • Carton size: 590 x 360 x 200mm
