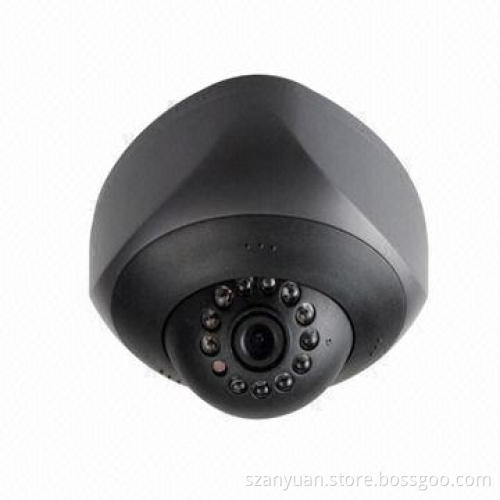

Color CCD Camera with 15m IR Night Vision and 540TVL Horizontal Resolution
  • Color CCD Camera with 15m IR Night Vision and 540TVL Horizontal Resolution
Color CCD Camera with 15m IR Night Vision and 540TVL Horizontal Resolution

Color CCD Camera with 15m IR Night Vision and 540TVL Horizontal Resolution

Get Latest Price
Payment Type:
Telegraphic Transfer in Advance (Advance TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer in Advance (Advance TT, T/T)
Product Description
Product Description
  • Product features:
    • 4.5-inch plastic Haich
    • Sony/Sharp CCD is optional
    • 420/480/520/540TVL is optional
    • 18-piece of Ø5mm IR LED
    • IR auto-open by CDS control in low lux
    • 15m night vision
    • Standard match: 3.6mm lens
  • Detailed specifications:
    • CCD type: 1/3-inch Sony
    • Pixels:
      • PAL: 795 x 596
      • NTSC: 811 x 508
    • Horizontal resolution: 540TVL
    • Scanning system: PAL/NTSC
    • Level synchronization frequency:
      • PAL: 15.625kHz
      • NTSC: 15.734kHz
    • Clock frequency:
      • PAL: 19.3125
      • NTSC: 19.0699
    • Scanning system: 2:1, de-interlacing
    • Minimum illumination: 0.1 lux (infrared light to open)
    • Sync system: synchronization
    • S/N ratio: 48dB
    • Electronic shutter:
      • PAL: 1/50 to 1/100,000 seconds
      • NTSC: 1/60 to 1/100,000 seconds
    • Gamma correction: 0.45
    • Video output: 1Vp-p, 75Ω
    • AGC: auto
    • Night vision: 10m
    • Power supply: 12V DC (±10%)
    • Current: 400mA
    • Number of LED: 12-piece
    • Operating temperature: -10 to 45°C
    • Dimensions: 96 x 96 x 63mm
    • Weight: 0.11kg
  • Carton size: 590 x 360 x 200mm
  • 4.5-inch plastic Haich
  • Sony/Sharp CCD is optional
  • 420/480/520/540TVL is optional
  • 18-piece of Ø5mm IR LED
  • IR auto-open by CDS control in low lux
  • 15m night vision
  • Standard match: 3.6mm lens
  • CCD type: 1/3-inch Sony
  • Pixels:
    • PAL: 795 x 596
    • NTSC: 811 x 508
  • Horizontal resolution: 540TVL
  • Scanning system: PAL/NTSC
  • Level synchronization frequency:
    • PAL: 15.625kHz
    • NTSC: 15.734kHz
  • Clock frequency:
    • PAL: 19.3125
    • NTSC: 19.0699
  • Scanning system: 2:1, de-interlacing
  • Minimum illumination: 0.1 lux (infrared light to open)
  • Sync system: synchronization
  • S/N ratio: 48dB
  • Electronic shutter:
    • PAL: 1/50 to 1/100,000 seconds
    • NTSC: 1/60 to 1/100,000 seconds
  • Gamma correction: 0.45
  • Video output: 1Vp-p, 75Ω
  • AGC: auto
  • Night vision: 10m
  • Power supply: 12V DC (±10%)
  • Current: 400mA
  • Number of LED: 12-piece
  • Operating temperature: -10 to 45°C
  • Dimensions: 96 x 96 x 63mm
  • Weight: 0.11kg
  • PAL: 795 x 596
  • NTSC: 811 x 508
  • PAL: 15.625kHz
  • NTSC: 15.734kHz
  • PAL: 19.3125
  • NTSC: 19.0699
  • PAL: 1/50 to 1/100,000 seconds
  • NTSC: 1/60 to 1/100,000 seconds
