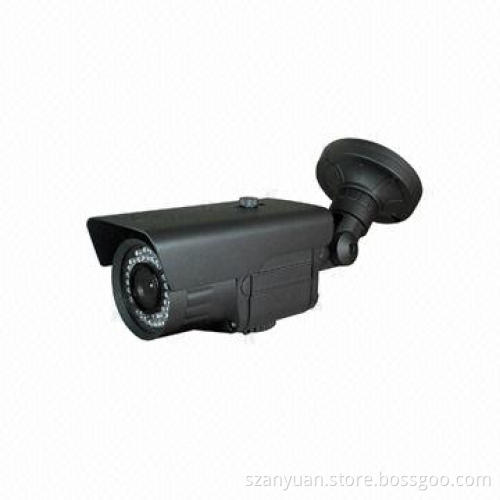

Water-resistant IR CCD Camera with 3-axis Bracket and 40m IR Night Vision Distance

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Product features:

IR weather-resistant camera
1/3-inch Sony 420/480/540TVL
42pcs of 5mm IR LED
With OSD menu, 3-axis bracket
40m night vision
Standard match 4 to 9mm varifocal lens, 9 to 22mm varifocallens, external lens adjusting

Detail specification:

Image sensor: 1/3-inch Sony Super CCD
Horizontal resolution: 540TVL
TV system: PAL/NTSC
Level synchronization frequency:
- PAL: 15.625kHz
- NTSC: 15.734kHz
Clock frequency:
- PAL: 19.3,125
- NTSC: 19.0,699
Scanning frequency: 2:1 interlace
Minimum illumination: 0.1 lux (infrared light to open)
System: internal synchronization
S/N ratio: 48dB
Electronic shutter:
- PAL: 1/50 to 1/100,000 seconds
- NTSC: 1/60 to 1/100,000 seconds
Gamma correction: 0.45
Video output: 1Vp-p, 75Ω
AGC: automatic
Night vision: 42pcs of 5mm(40m)
Power supply: 12V DC (&pm;10%)
Current: 150mA
Carton size: 672 x 335 x 263mm
Quantity/carton: 36pcs
Weight: 0.75kg
Operating temperatures: -10 to 45°C
Colors: dark gray and white
