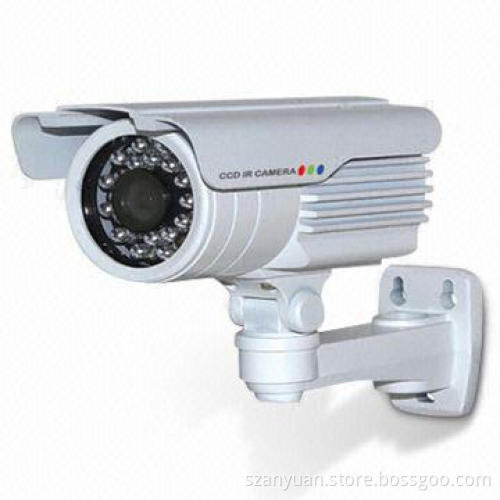

CCD Waterproof Camera with 3.6mm Lens and 25m IR Night Vision

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

1/3-inch Sony super HAD CCD

Pixels:

PAL: 795 x 596
NTSC: 811 x 508

Horizontal resolution: max 540TVL

25m IR night vision

3.6mm lens

AL casing, strong and beautiful

Cable built-in bracket dracket design, convenient forinstallation

Scanning system: PAL/NTSC

Level synchronization frequency:

PAL: 15.625kHz
NTSC: 15.734kHz

Clock frequency:

PAL: 19.3125
NTSC: 19.0699

Scanning system: 2:1 deinterlacing

Minimum illumination: 0.1 lux (infrared light to open)

Synchronization system

S/N ratio: 48dB

Electronic shutter:

PAL: 1/50-1/100,000sec
NTSC: 1/60-1/100,000sec

Gamma correction: 0.45

Video output: 1Vp-p, 75 ohms

AGC: auto

Power supply: 12V DC (±10%)

Current: 250mA

Carton size: 590 x 360 x 200mm

Number of TEUs packaging: 30 Taiwan

Dimensions: 96 x 96 x 63mm

Weight: 0.11kg

Operating temperature: -10 to 45

Color: white/black

PAL: 795 x 596

NTSC: 811 x 508

PAL: 15.625kHz

NTSC: 15.734kHz

PAL: 19.3125

NTSC: 19.0699

PAL: 1/50-1/100,000sec

NTSC: 1/60-1/100,000sec
