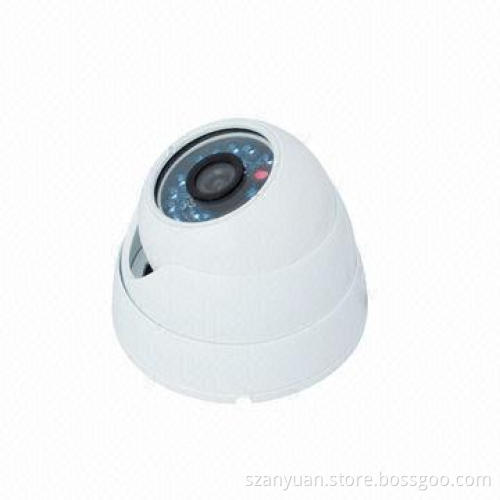

IR CCTV Dome Camera with 1/3-inch Pixim DPS Sensor, 690TVL Resolution, 8x Digital Zoom and 20m Range

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Specifications:

Sensor: 1/3-inch Pixim DPS

Digital zoom: 8x

Super wide dynamic range: 120dB

Voltages: 12V DC

Current: ≤150mAh

Video output: 1.0Vp-p/75Ω composite

Lens: 3.6mm fix

IR range: 20m

With OSD menu

Video formats: PAL and NTSC

Resolution: 690TVL (effective)

Minimum illumination: 0 lux (IR-on)

S/N ratio: up to 50dB maximum (Y-signal and AGC off)

Extended slow shutter modes: 1, 2, 4, 8 and 16 to 32x

AGC: programmable up to 50dB

WDR: 120dB (maximum)

Iris control: electronic iris or auto iris lens (DC drive)

Extended slow shutter: 2, 4, 8, 16 and 32x

Noise reduction: 3D motion adaptive

White balance: ATW and AWB

Low light modes: low-speed shutter, AGC and sense up B/W low-speed shutter image

Day/night: true and soft day/night (B/W)

Sync mode: internal or line lock

Installation type: wall embedded

Operating temperature: -10 to 50°C

Storage temperature: -20 to 60°C

Weather-resistant grade: IP55

Dimensions: Ø70 x 95mm

Weight: 350g
