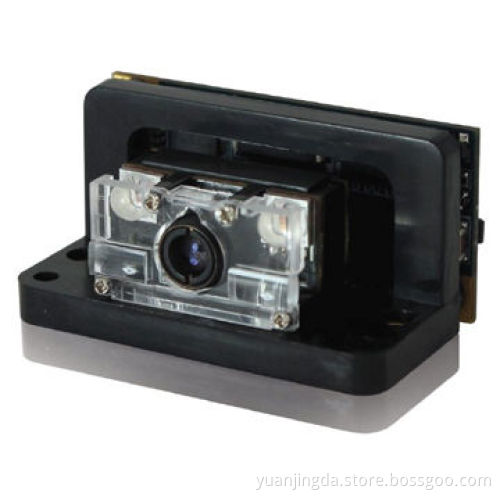

2D Barcode Scanner Software Module, TTL232 Interface, Dismountable Unit

2D Barcode Scanner Software Module, TTL232 Interface, Dismountable Unit

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Features:

2D bar-code scan engines, powered by advanced imaging technology computerized image recognition system
Can read bar-codes printed on paper/plastic or displayed on mobile phones with nice motion tolerance
Supports both mainstream 1D and standard 2D bar-code symbologies (PDF417, QR code, data matrix, composite code) as well as Chinese sensible code and GS1-data bar TM (RSS) (limited/stacked/expanded versions)

Specifications:

Interface: TTL232
Image sensor: 752x480 CMOS
Scan angle roll: 360°
Pitch: ±50°
Skew: ±50°
Illumination: red LED 620 ±10nm
Voltages: 3.3-5.5V DC
Current working: 330mA
Idle: 60mA
Low power: 1.2mA
Operating temperatures: -20 to 50°C
Storage temperatures: -40 to 80°C
Weight: combined
Type: 11.8g
Discrete type: 8.3g
Dimensions (L x W xH): 40.5x25x20mm

2D bar-code scan engines, powered by advanced imaging technology computerized image recognition system

Can read bar-codes printed on paper/plastic or displayed on mobile phones with nice motion tolerance

Supports both mainstream 1D and standard 2D bar-code symbologies (PDF417, QR code, data matrix, composite code) as well as Chinese sensible code and GS1-data bar TM (RSS) (limited/stacked/expanded versions)

Interface: TTL232

Image sensor: 752x480 CMOS

Scan angle roll: 360°

Pitch: ±50°

Skew: ±50°

Illumination: red LED 620 ±10nm

Voltages: 3.3-5.5V DC

Current working: 330mA

Idle: 60mA

Low power: 1.2mA

Operating temperatures: -20 to 50°C

Storage temperatures: -40 to 80°C
