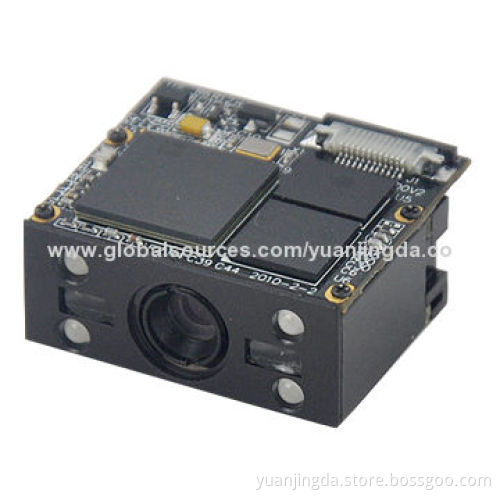

LV3000, 1D 2D Rugged Barcode Scanner Android with TTL232 Interface

LV3000, 1D 2D Rugged Barcode Scanner Android with TTL232 Interface

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

Highlights:

Embedded 2D barcode scan engine
Designed for OEM applications, this high performance CMOS engine can easily be integrated into various solutions such as kiosks, ticketing machines and PDA's and various more

Features:

Easy of integration
Compact (smaller than paperclip) and easy to integrate design, image capture device with decoder on one board
Small form factor enables easy to integration into various solutions

Advanced technology:

Technology includes optical, CMOS, digitizer, decoder, image processing and embedded systems
Supports all global standard 1D barcode symbolizes Reading performance reaches and exceeds global standards
By using accessories provided, user can ideally setup scanner to its user environment

Specifications:

Interface: TTL232
Image sensor: 752*480p CMOS
Depth of scan field: 40-235mm
Illumination: 0-100,000lux
Light source: LED (618-63nm)
Voltage: 3.3 ±0.3V DC
Maximum current: 450mA
Working current: 300mA
Idle: 60mA
Operating temperatures: -5 to 45°C
Storage temperatures: -40 to 60°C
Weight: 10g
Dimensions: (L)28*(W)24*(H)14mm

Embedded 2D barcode scan engine

Designed for OEM applications, this high performance CMOS engine can easily be integrated into various solutions such as kiosks, ticketing machines and PDA's and various more

Easy of integration

Compact (smaller than paperclip) and easy to integrate design, image capture device with decoder on one board

Small form factor enables easy to integration into various solutions

Technology includes optical, CMOS, digitizer, decoder, image processing and embedded systems

Supports all global standard 1D barcode symbolizes Reading performance reaches and exceeds global standards

By using accessories provided, user can ideally setup scanner to its user environment

Interface: TTL232

Image sensor: 752*480p CMOS

Depth of scan field: 40-235mm

Illumination: 0-100,000lux

Light source: LED (618-63nm)

Voltage: 3.3 ±0.3V DC
