LV1000 CCD Handheld Barcode Scanner Module for Conveyor Checkout Counter and mobile devices
  • LV1000 CCD Handheld Barcode Scanner Module for Conveyor Checkout Counter and mobile devices
  • LV1000 CCD Handheld Barcode Scanner Module for Conveyor Checkout Counter and mobile devices
  • LV1000 CCD Handheld Barcode Scanner Module for Conveyor Checkout Counter and mobile devices
  • LV1000 CCD Handheld Barcode Scanner Module for Conveyor Checkout Counter and mobile devices
  • LV1000 CCD Handheld Barcode Scanner Module for Conveyor Checkout Counter and mobile devices
  • LV1000 CCD Handheld Barcode Scanner Module for Conveyor Checkout Counter and mobile devices
  • LV1000 CCD Handheld Barcode Scanner Module for Conveyor Checkout Counter and mobile devices
  • LV1000 CCD Handheld Barcode Scanner Module for Conveyor Checkout Counter and mobile devices
LV1000 CCD Handheld Barcode Scanner Module for Conveyor Checkout Counter and mobile devices
LV1000 CCD Handheld Barcode Scanner Module for Conveyor Checkout Counter and mobile devices
LV1000 CCD Handheld Barcode Scanner Module for Conveyor Checkout Counter and mobile devices
LV1000 CCD Handheld Barcode Scanner Module for Conveyor Checkout Counter and mobile devices
LV1000 CCD Handheld Barcode Scanner Module for Conveyor Checkout Counter and mobile devices
LV1000 CCD Handheld Barcode Scanner Module for Conveyor Checkout Counter and mobile devices
LV1000 CCD Handheld Barcode Scanner Module for Conveyor Checkout Counter and mobile devices
LV1000 CCD Handheld Barcode Scanner Module for Conveyor Checkout Counter and mobile devices

LV1000 CCD Handheld Barcode Scanner Module for Conveyor Checkout Counter and mobile devices

Get Latest Price
Payment Type:
Telegraphic Transfer (TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer (TT,T/T)
Product Description
Product Description
  • Introduction:
    • OEM develop special and small size
    • 3.3-5V medical industry PC kiosk

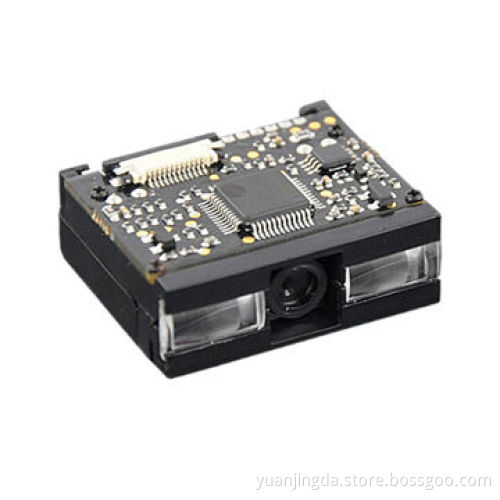

    • Outline of LV1000 is shown in figure1
    • Topside has electrical control components, including flexible cable socket, interface socket, through which LV1000 interfaces with external device
    • Front side has optical components such as image lens, through which LV1000 captures image
    • Aiming light, which sends rectangular, green light beam for aiming and illumination lights, which illuminates bar-code
    • Bracket covers sides and bottom of engine
    • Two mounting holes on the bottom side are available for mounting engine to external device
    • Back side is CCD circuit for image capture
  • Specifications:
    • Interface: TTL232
    • Image sensor: CCD
    • Scan rate: up to 200 scans/sec
    • Light source: LED (622 - 628nm)
    • Depth of scan fields: 40-430mm
    • Illumination: 0-100,000Lux
    • Power consumption: 0.33W
    • Voltage: DC 3.3V
    • Current working: 150mA (maximum)
    • Idle: 45mA
    • Sleep: 1mA
    • Weight: 6g
    • Dimension: 28 x 23 x 11mm
  • OEM develop special and small size
  • 3.3-5V medical industry PC kiosk
  • Outline of LV1000 is shown in figure1
  • Topside has electrical control components, including flexible cable socket, interface socket, through which LV1000 interfaces with external device
  • Front side has optical components such as image lens, through which LV1000 captures image
  • Aiming light, which sends rectangular, green light beam for aiming and illumination lights, which illuminates bar-code
  • Bracket covers sides and bottom of engine
  • Two mounting holes on the bottom side are available for mounting engine to external device
  • Back side is CCD circuit for image capture
  • Interface: TTL232
  • Image sensor: CCD
  • Scan rate: up to 200 scans/sec
  • Light source: LED (622 - 628nm)
  • Depth of scan fields: 40-430mm
  • Illumination: 0-100,000Lux
  • Power consumption: 0.33W
  • Voltage: DC 3.3V
  • Current working: 150mA (maximum)
  • Idle: 45mA
  • Sleep: 1mA
  • Weight: 6g
  • Dimension: 28 x 23 x 11mm
