Product Description

Introductions:

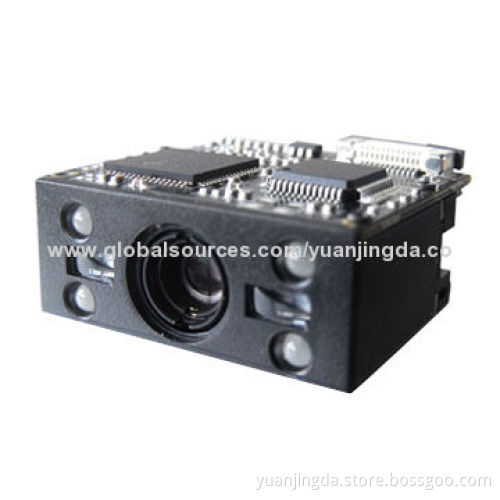

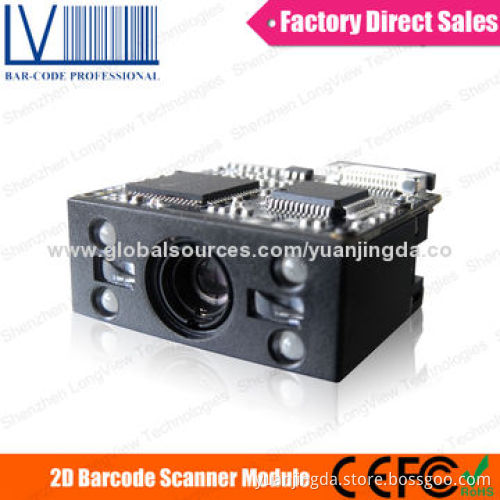

LV3070 series embedded 2D barcode scan engines, armed with the long view patented, computerized image recognition system, bring about new era of 2D barcode scan engines
LV3070 2D barcode decoder chip ingeniously blends technology and advanced chip and manufacturing, which significantly simplifies application design and delivers superior performance and solid reliability with low-power consumption
LV3070 supports all mainstream 1D and standard 2D barcode symbolizes (such as PDF417, QR code M1/M2/micro and data matrix) as well as GS1-databar TM (RSS) (limited/stacked/expanded versions)
Compact, lightweight engine fits easily into even most space-constrained equipment’s such as data collectors, meter readers, ticket validators and PDAs

Highlights of LV3070:

Slim size allowing easy embedding into OEM equipment and systems
Outstanding decoding performance for major 1D and 2D barcodes
High performance CPU and image capture module ensuring fast and accurate scan
Easy OEM software development and firmware upgrade

Specification:

Interface: TTL232
Image sensor: 752 x 480p CMOS
Illumination: red LED 625, ±10nm
Reading precision: 0-450mm
Precision: ≥5mil
Symbol contra: ≥25%

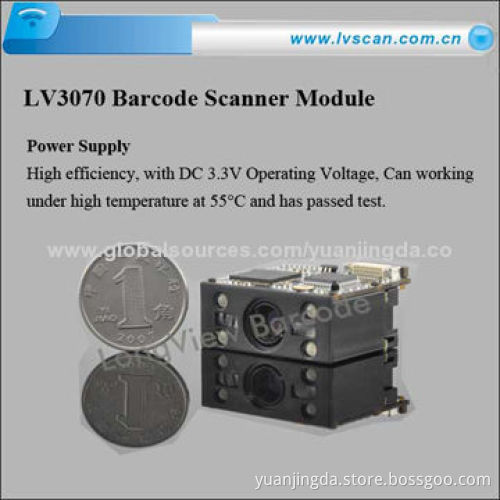

Voltage: 3.3V DC
Operating current: 270mA
Standby current: 270mA
Low power: 3μA
Power consumption: <0.9W
Weight: 9.5g
Dimension (W x D H): 28.0x24.5x13.9mm
