Product Description

Industrial temperatures and high-IP rating

Introduction:

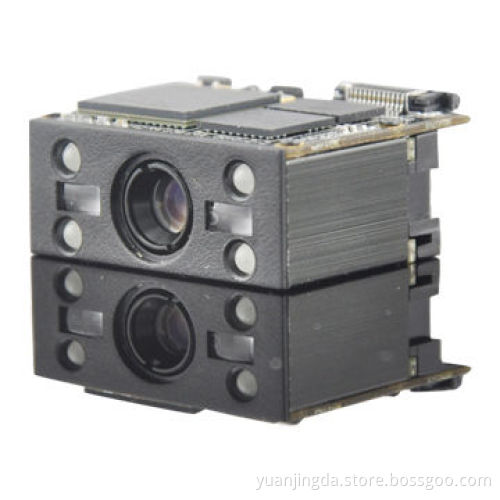

Embedded barcode reading engine
Greyscale CMOS image capture, computerized image recognition system
Ensure fast scanning and decoding accuracy on various barcode media such as paper, plastic card and metal surface
Can be easily integrated into OEM equipment or systems (handheld, portable and mounted) to provide solutions for image capture, barcode reading and barcode message processing
Opens its image acquisition interface and camera control to allow their special integration needs
Slim size allowing easy embedding into OEM equipment and systems
Outstanding decoding performance for major 1 and 2D barcodes
High performance CPU and image capture module ensuring fast and accurate scans
Easy OEM software development and firmware upgrade

Features:

Can connect with Android PC
Small and lightweight
Miniature design enables easy integration to OEM devices
Powered by TM Technology
Induced scanning performance
2D barcode scanner engines image sensor CMOS 752*480p

Symbologies:

2D barcode scanner engine: 2D PDF417, QR Code (model 1/2), Data Matrix (ECC200, ECC000, 050, 080, 100, 140), Aztec, Mexicode, Chinese-sensible Code and more
1D Code: 128, EAN-13, EAN-8, Code39, UPC-A, UPC-E, Codabar, China post 25, Interleaved 2 of 5, ISBN/ISSN and Code 93

Specifications:

Interface: TTL232
Image sensor: 752*480p CMOS
Depth of scan field: 40-235mm
Illumination: 0-100,000lux
Light source: LED (618-633nm)
Voltage: 3.3 ±0.3V DC
Current:
- Maximum: 450mA
- Working: 300mA
- Idle: 60mA
Operating temperature: -5 to 45 deg. C
Storage temperature: -40 to 60 deg. C
Weight: 10g
Dimensions: 28 x 24 x 14mm

Embedded barcode reading engine

Greyscale CMOS image capture, computerized image recognition system

Ensure fast scanning and decoding accuracy on various barcode media such as paper, plastic card and metal surface

Can be easily integrated into OEM equipment or systems (handheld, portable and mounted) to provide solutions for image capture, barcode reading and barcode message processing

Opens its image acquisition interface and camera control to allow their special integration needs

Slim size allowing easy embedding into OEM equipment and systems

Outstanding decoding performance for major 1 and 2D barcodes

High performance CPU and image capture module ensuring fast and accurate scans

Easy OEM software development and firmware upgrade

Can connect with Android PC

Small and lightweight

Miniature design enables easy integration to OEM devices

Induced scanning performance

2D barcode scanner engines image sensor CMOS 752*480p

2D barcode scanner engine: 2D PDF417, QR Code (model 1/2), Data Matrix (ECC200, ECC000, 050, 080, 100, 140), Aztec, Mexicode, Chinese-sensible Code and more

1D Code: 128, EAN-13, EAN-8, Code39, UPC-A, UPC-E, Codabar, China post 25, Interleaved 2 of 5, ISBN/ISSN and Code 93

Interface: TTL232

Image sensor: 752*480p CMOS

Depth of scan field: 40-235mm

Illumination: 0-100,000lux

Light source: LED (618-633nm)

Voltage: 3.3 ±0.3V DC

Current:
