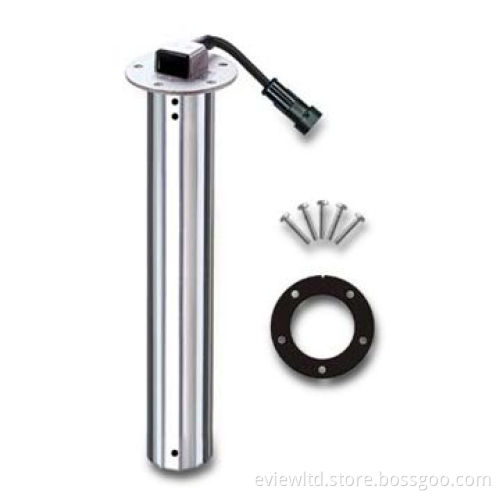

Fuel Level Sensor for Mobile Construction Machinery, Diesel, Fuel with Metal Damping CoverNew

Fuel Level Sensor for Mobile Construction Machinery, Diesel, Fuel with Metal Damping CoverNew

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Specifications:

Metal damping cover
Integrated damping covers to improve the accuracy of the sensor during the violent vibrating environment
Reed switch technology, product is robust and durable
Resolution range: 10-40mm

Features:

Main body is made of SUS304 with the addition of the damping cover to improve the accuracy of the sensor during the violent vibrating environment

Technical specifications:

Length range: 150-1,200mm for standard (can be customized)
Supply voltages: 10-32V
Rated current for alarm switch: 500mA
Output signal: resistances: 0-190 Ω
Currents: 0-20 or 4-20mA
Voltages: 0.5-4.5 or 0-5V (can be customized)
Material: SUS306
Assembly: SAE standard 5 holes, other mounting
Accessories: 5 x M5 screws and 2mm thick NBR gasket
If installing on a gas tank, we recommend the optional 2mm thick FPM gasket
Operating temperatures: -40 to 85°C
Protection rank: IP65
Option: high/low-alarm, damping cover

Applications:

Mainly used on trucks, generators/gen set, fuel disbursement, vehicles and buss, construction machinery for fuel lever detection
To be specific, the field for construction machinery could be ranged of excavator, backhoe, bulldozer, dump trucks, concrete crushers, front-end loader, crane and pick-up trucks and more

Metal damping cover

Integrated damping covers to improve the accuracy of the sensor during the violent vibrating environment

Reed switch technology, product is robust and durable

Resolution range: 10-40mm

Main body is made of SUS304 with the addition of the damping cover to improve the accuracy of the sensor during the violent vibrating environment

Length range: 150-1,200mm for standard (can be customized)

Supply voltages: 10-32V

Rated current for alarm switch: 500mA

Output signal: resistances: 0-190 Ω

Currents: 0-20 or 4-20mA

Voltages: 0.5-4.5 or 0-5V (can be customized)

Material: SUS306

Assembly: SAE standard 5 holes, other mounting

Accessories: 5 x M5 screws and 2mm thick NBR gasket

If installing on a gas tank, we recommend the optional 2mm thick FPM gasket

Operating temperatures: -40 to 85°C

Protection rank: IP65

Option: high/low-alarm, damping cover

Mainly used on trucks, generators/gen set, fuel disbursement, vehicles and buss, construction machinery for fuel lever detection

To be specific, the field for construction machinery could be ranged of excavator, backhoe, bulldozer, dump trucks, concrete crushers, front-end loader, crane and pick-up trucks and more
