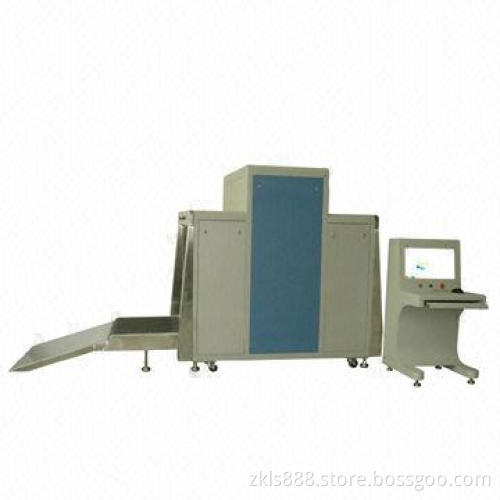

X-ray Baggage Inspection System with Ergonomic TFT LCD Monitor

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

Characteristics:

Single 17-inch high resolution, low radiation and ergonomic TFT LCD monitor
Display resolution: 1280x1024p, 24 bits/pixel color
Contrast sensitivity: 24 visible levels, 4096 gray level
Image storage: 60,000 pictures in real-time
Zones and zoom: 1 to 9 image regions, 2, 4, 8 and 16 times enlarge, whole screen continuous observation
Processing: edge enhancement, image strengthening, image lightening, reducing darkening, image returning and image retrieval
Multi-energy (M) color material identification: organic objects in orange, inorganic objects in blue and mixture in green

Parameters:

X-ray sensor: L-shaped photodiode array (multi-energetic), 12 bit deep
Maximum conveyor load: 170kg
Tunnel size: (W)1000x(H)1000mm
Orientation: vertically upward
Anode voltage: 100 to 160kV (adjustable)
Angle: 80°
Generator cooling/working periods: sealed oil bath with forced air/100
Tube current: 0.4 to 1.2mA (adjustable)
Conveyor speed: 0.22m/s
Single inspection dosage: Steel penetration: 34mm armor plate
Penetrate resolution: Ø0.254mm
Film safety: for ISO 1600
Maximum leakage radiation: Resolution: Spatial resolution level: Ø1.0mm (vertical: Ø1.0mm)
Operating temperature/humidity: 0 to 45°C/20 to 95% (non-condensing)
Storage temperature/humidity: -20 to 60°C/20 to 95% (non-condensing)
Operating power: 220V AC (±10%) at 50 ±3Hz
Power consumption: 1.0kW (maximum)
Noise:
