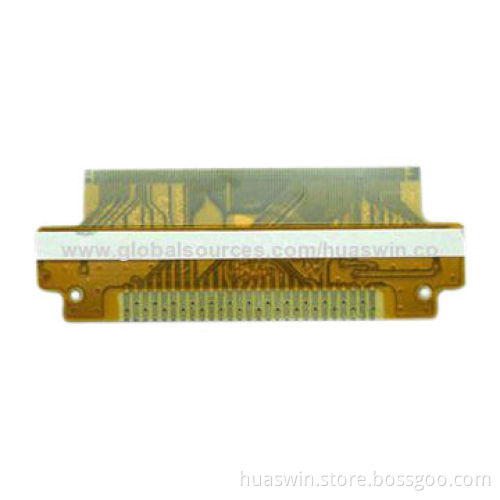

Rigid-flex PCB

Get Latest Price

Payment Type:: Negotiable

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Negotiable

Product Description

Cope of products: Single-side FPC, double-side FPC, multilayer FPC, aluminum substrate, copper substrate, single-side hollowed-out FPC and double-side hollowed-out FPC

Thinnest substrate: Copper foil/PI film: 18/12.5 um

Smallest wire width and distance: 0.05mm/0.05mm (2mil/2mil)

Smallest aperture: 0.20mm (8mil)

Resistance to flexural cracking: > 150, 000 cycles

Etching tolerance: + - 0.25 mil

Tolerance for exposure and alignment: + - 0.05mm (2mil)

Tolerance for projection punching: + - 0.025mm (1mil)

Tolerance for PI film alignment: < 0.10mm (4mil)

Tolerance for reinforcing and take alignment: < 0.1mm (4mil)

Maximum processing area: 25cm * 50cm for double side; 25 cm * 10000cm for single side; 25cm * 25cm for multilayer

Forming tolerance: + - 0.05mm

ROLL to ROLL process

Mode of surface treatment:

Electroplated guiding
Chemical gilding
Pure electroplating tine
Chemical tin
Antioxidation

Electroplated guiding

Chemical gilding

Pure electroplating tine

Chemical tin

Antioxidation
