Flexible PCB for electronic product

Get Latest Price

Payment Type:: Negotiable

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Negotiable

Product Description

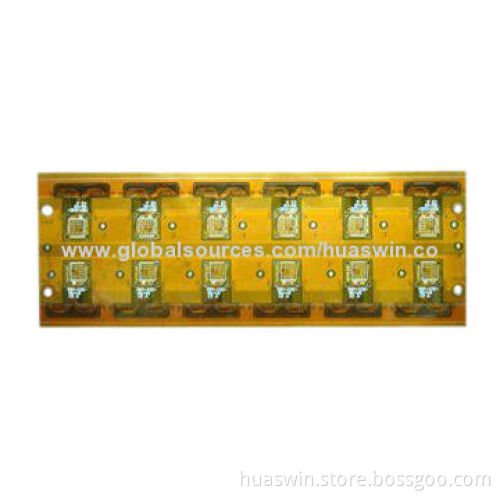

Flexible PCB

Suitable for electronic products

Cope of products: single-side FPC, double-side FPC, multilayer FPC, aluminum substrate, copper substrate, single-side hollowed-out FPC and double-side hollowed-out FPC

Thinnest substrate:

Copper foil/PI film: 18/12.5µm

Smallest wire width and distance: 0.05/0.05mm (2/2mil)

Smallest aperture: 0.20mm (8mil)

Resistance to flexural cracking: >150,000 cycles

Etching tolerance: ±0.25mil

Tolerance for exposure and alignment: ±0.05mm (2mil)

Tolerance for projection punching: ±0.025mm (1mil)

Tolerance for PI film alignment: <0.10mm (4mil)

Tolerance for reinforcing and take alignment: <0.1mm (4mil)

Maximum processing area: 25 * 50cm for double side, 25 * 10,000cm for single side, 25 * 25cm for multilayer

Forming tolerance: ±0.05mm

Roll to roll process

Mode of surface treatment:

Electroplated guiding
Chemical gilding
Pure electroplating tine
Chemical tin
Anti-oxidation

Copper foil/PI film: 18/12.5µm

Electroplated guiding

Chemical gilding

Pure electroplating tine

Chemical tin

Anti-oxidation
