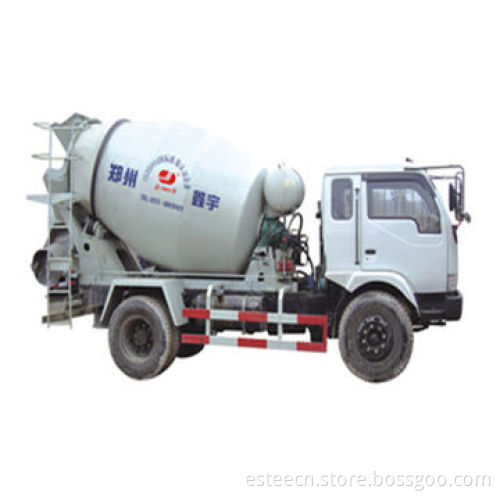

XY5224GJB4/GJB Concrete Truck Mixer with 8m³ Nominal Capacity and 62% Filling RatioNew

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Overall:

Chassis model: XY5224GJB4/GJB

Cab: East Wind153 (1.5 rows)

Gearbox: 7JS110A

Wheelbase: (3600+1350)mm

Maximum speed: 70km/hr

Total weight: 11,500kg

Dimensions: 8,610 x 2,480 x 3,750mm

Drum:

Geometric volume: 12.83m³

Nominal capacity: 8m³

Filling ratio: 0.62

Feeding height: 3800mm

Maximum diameter (inner): Ø2,300mm

Drum rotations: 0 to 11/0 to 14rpm

Discharge residual percentage: <1%

Slump scope: 50 to 210

Engine:

Model: YC6A260-21

Rated power: 191kW/260hp

Hydraulic system:

Reducer type: OK-45/okor141 (imported)

Oil pump type: proportional pump/variable displacement pump

Motor: cycloid/quantitative

Hydraulic circuit: open loop, split type/static circuit,single/mixed drive

Water supply system:

Water tank capacity: 420L

Water supply mode: pneumatic water supply, working pressure of≤0.2 to 0.3MPa
