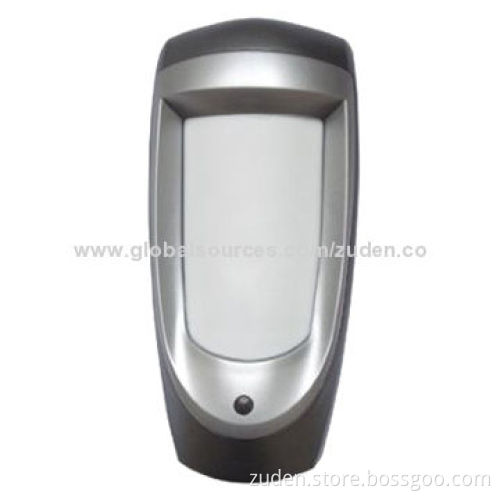

Wireless/Wired PIR Motion Detector with Built-in Antenna, Tamper Switch/Gold Logic Control
  • Wireless/Wired PIR Motion Detector with Built-in Antenna, Tamper Switch/Gold Logic Control
  • Wireless/Wired PIR Motion Detector with Built-in Antenna, Tamper Switch/Gold Logic Control
Wireless/Wired PIR Motion Detector with Built-in Antenna, Tamper Switch/Gold Logic Control
Wireless/Wired PIR Motion Detector with Built-in Antenna, Tamper Switch/Gold Logic Control

Wireless/Wired PIR Motion Detector with Built-in Antenna, Tamper Switch/Gold Logic Control

Get Latest Price
Payment Type:
Telegraphic Transfer in Advance (Advance TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer in Advance (Advance TT, T/T)
Product Description
Product Description
  • Features:
    • Logic control and anti-false alarm efficiently
    • Tamper switch: will send alarm signal if coverdisassembled
    • Fire-resistant ABS housing and Fresnel lens
    • LED on/off optional
    • Automatic temperature compensation
    • SMT adopted, anti-RFI and -white light interference
    • Pulse count optional
    • Alarm output NC/NO optional
    • Integrated antenna: built-in
    • Wall-/corner-mounted
    • Detecting human motion and body temperature in wild anglearea
    • Adopts advanced technology in signal processing
    • Provides high detection ability and anti-error alarm
    • Compounding of high precision passive infrared detector andlogical digital circuit design
    • Can detect human movement automatically when intruder passthrough detected area and will send out alarm signal to alarm hostthat there movement
    • All-pervading indoor wall hanging style
    • Suitable for safety of residential houses, villas, factories,markets, warehouses and office buildings
    • Ideal for any decorative environments
  • Specifications:
    • Operating voltage: 9V battery/9 to 16V DC
    • Consumption current: <18mA (12V DC)
    • Operating temperatures: -10 to 50°C
    • Installation mode: wall-mounted
    • Installation height: about 2.2m
    • Detecting distance: 12m
    • Detecting angle: 110°
    • Working frequency: 315/433MHz
    • Transmitting distance: >200m (in open area)
    • Anti-dismantle switch: NC
    • Dimension: 95 x 55 x 42mm
  • Packing:
    • Box dimension: 12.5 x 7.7 x 5.3cm
    • Weight: 0.12kg
  • Logic control and anti-false alarm efficiently
  • Tamper switch: will send alarm signal if coverdisassembled
  • Fire-resistant ABS housing and Fresnel lens
  • LED on/off optional
  • Automatic temperature compensation
  • SMT adopted, anti-RFI and -white light interference
  • Pulse count optional
  • Alarm output NC/NO optional
  • Integrated antenna: built-in
  • Wall-/corner-mounted
  • Detecting human motion and body temperature in wild anglearea
  • Adopts advanced technology in signal processing
  • Provides high detection ability and anti-error alarm
  • Compounding of high precision passive infrared detector andlogical digital circuit design
  • Can detect human movement automatically when intruder passthrough detected area and will send out alarm signal to alarm hostthat there movement
  • All-pervading indoor wall hanging style
  • Suitable for safety of residential houses, villas, factories,markets, warehouses and office buildings
  • Ideal for any decorative environments
  • Operating voltage: 9V battery/9 to 16V DC
  • Consumption current: <18mA (12V DC)
  • Operating temperatures: -10 to 50°C
  • Installation mode: wall-mounted
  • Installation height: about 2.2m
  • Detecting distance: 12m
  • Detecting angle: 110°
  • Working frequency: 315/433MHz
  • Transmitting distance: >200m (in open area)
  • Anti-dismantle switch: NC
  • Dimension: 95 x 55 x 42mm
  • Box dimension: 12.5 x 7.7 x 5.3cm
  • Weight: 0.12kg
