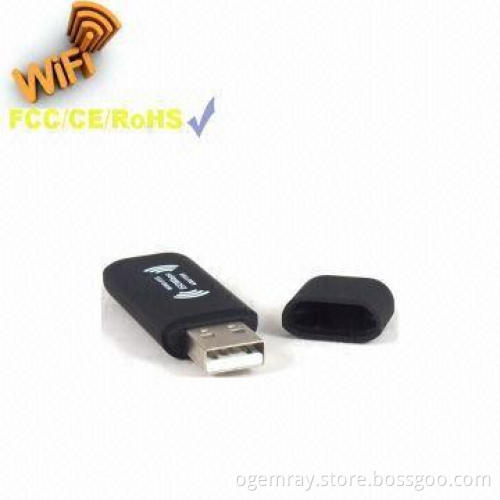

External USB Wireless Network Card, Used for IP Device

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	L/C, T/T, Wester Union

Product Description

Supports software AP function

With built-in PCB antenna

Supports high speed USB2.0/1.1 interface

Software AP function, drivers supporting Windows 7/XP/Vista/CE,Linux 2.6X and Mac OS

High Security: WEP 64/128 bit, WPA and WPA2

LED show: link or activity

Ralink RT3070(DC/DC) MAC/BBP

Main features:

802.11b: 1, 2, 5.5, 11Mbps
802.11g: 6, 9, 12, 24, 36, 48, 54Mbps
Peak rate: 54 or 150Mbps
Peak throughput: 27 or 90Mbps
Certification:
- Wi-Fi certification: 802.11 b/g, WPA, WPA2, WMM and WMM-PS
- WHQL, Cisco CCX and USB-IF
Hardware:
- Chipset: Ralink RT3070
- Host interface: USB2.0/1.1 type A (4 pin header)
- LEDS: link/activity
RF:
- Antenna: built-in PCB on board
- Frequency: 2412 to 2483.5MHz, ISM band
Transmit power:
- 802.11b: 17±1.5dBm
- 802.11g: 14±1.5dBm
Receive sensitivity:
- 802.11b: -84dBm at 11Mbps
- 802.11g: -68dBm at 54Mbps
Software:
- Operating system: Windows CE/2000/XP/Vista, Linux and Mac OSX
- Security: WEP 64/128, WPA, WPA2, 802.1x, Cisco CCS V1.0, 2.0and V3.0 compliant
Operation conditions:<>
Voltage range: 5.0V DC ±5%
Operating temperatures: 0 to 50°C
Storage temperatures: -20 to 70°C
Operating humility: RH 95% (non-condensing)
Storage humidity: RH 95% (non-condensing)
