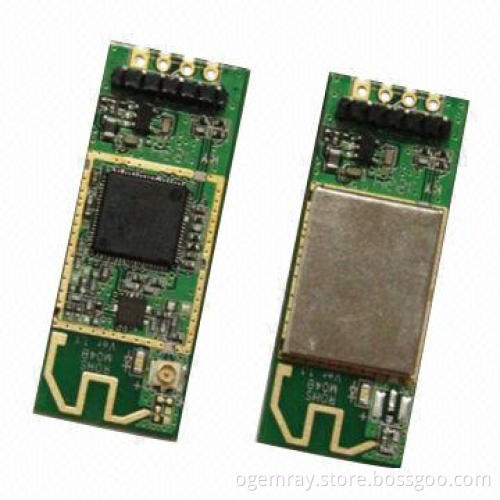

Embedded Ralink RT3070 150Mbps Wireless WiFi USB Module for IP Camera STB IP Products

Get Latest Price

Payment Type:: T/T or Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or Western Union

Product Description

Description:

1T1R Mode
802.11N 150Mbps wireless USB adapter
Ralink RT3070 chip set
High peak rate WiFi adapter
Software AP function
150Mbps WiFi module
USB WiFi dongle
802.11 n WiFi USB module
Wireless network card
6-pin 2.0mm or 4-pin 2.54mm male pitch jumper
Ralink RT3070(DC/DC) MAC/BBP

Features:

802.11b: 1, 2, 5.5, 11Mbps, 802.11g: 6, 9, 12, 24, 36, 48,54Mbps

Peak rate 54Mbps, peak throughput 27Mbps

Power management

1T1R Mode

802.11N 150Mbps wireless USB adapter

Ralink RT3070 chip set

High peak rate WiFi adapter

Software AP function

150Mbps WiFi module

USB WiFi dongle

802.11 n WiFi USB module

Wireless network card

6-pin 2.0mm or 4-pin 2.54mm male pitch jumper

Ralink RT3070(DC/DC) MAC/BBP

Certification:

Wi-Fi Certification: 802.11 b/g, WPA, WPA2, WMM, WMM-PS

WHQL, Cisco CCX, USB-IF

Hardware:

Chip set: Ralink RT3070

Host interface: USB2.0 (4-pin 2.54mm or 6-pin 2.0mm male pitchjumper)

LEDs, Link/Acticity

RF:

Antenna: External antenna visa IPEX socket or built-in-PCBantenna

Frequency: 2412~2483.5 MHz, ISM band

Transmit power: 802.11b: 17+/-1.5dBm, 802.11g: 14+/-1.5dBm

Receive sensitivity: 802.11b: -84dBm@11Mbps, 802.11g:-68dBm@54Mbps

Software:

Operation system: Windows CE/2000/XP/Vista/7, Linux, Mac OSX

Security: WEP 64/128, WPA, WPA2, 802.1x, Cisco CCS V1.0, 2.0and V3.0 compliant

Operating conditions:

Voltage range: DC 5.0V ± 5%

Operating temperatures: 0 to 50°C

Storage temperatures: -20 to 70°C

Operating humility: RH 95% (Non-Condensing)

Storage humidity: RH 95% (Non-Condensing
