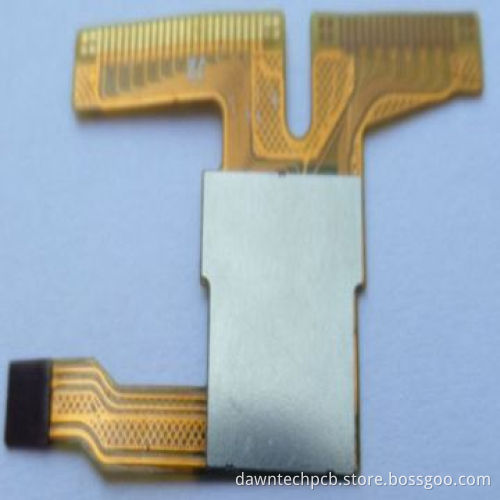

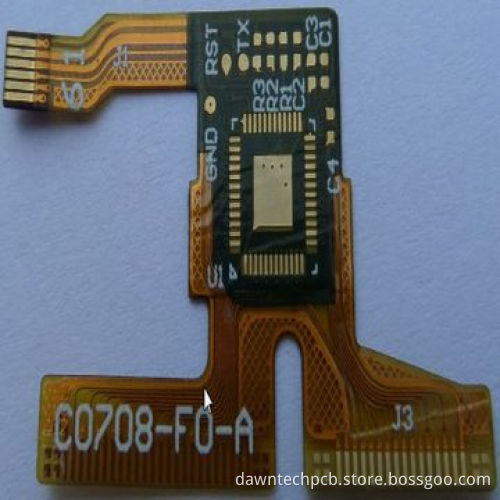

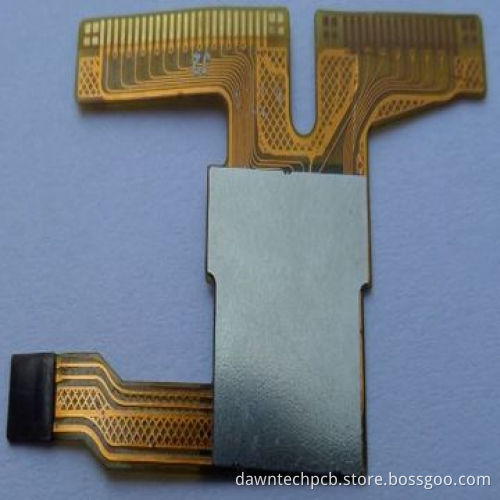

TP FPC Flexible Board

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Cash Advance (CA)

Product Description

Flatbed TP touch panel

IC integrated circuit

Number of layers: 2 layers (flexible)

Base material thickness: 25UM

Copper conductor thickness: 18UM

Materials: polyester, polyimide, DuPont

Copper: RA, ED

Minimum hole diameter: 0.15mm

Minimum line/space width: 0.075mm

Minimum annular ring: 0.1mm

Maximum panel size: 400 x 400mm

Plating: solder, nickel, gold

Volume resistivity: 1 x 1,015 (IPC-TM-650 2.5.6.17)

Dissipation factor (1MHz): 0.04 (mil-P55617)

Solder heat resistance: 300-degree C/10 seconds

Dielectric strength: 5kV (IPC-TM-650 2.5.6.1)

Insulation resistance: 1,000mW (IPC-TM-650: 2, 6, 3, 2 at ambient)

Peeling strength (180-degree direction): 1.0kg/cm (IPC-TM-650 2.4.9)

Flammability: 94 V-0 (UL94)

Surface resistance: 5 x 1,012 (IPC-TM-650 2.5.6.17)

Dissipation factor (1MHz): 0.04 (mil-P-55617)

RoHS compliant, UL
