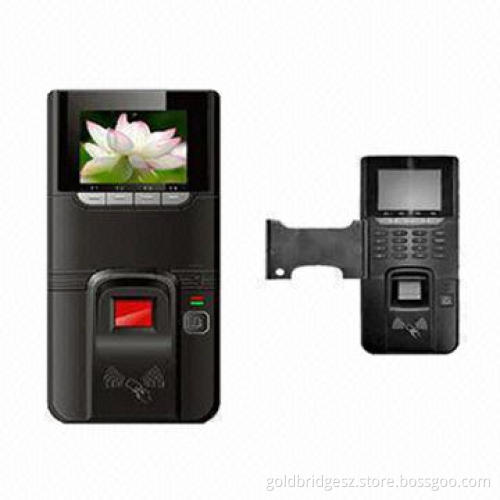

Fingerprint Door Control With Card Reader Exit Release door entry control system

Fingerprint Door Control With Card Reader Exit Release door entry control system

Get Latest Price

Payment Type:: T/T and Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T and Western Union

Product Description

Our manufacturer time attendance control include: face timeattendance with simple access control, professional access controland time attendance recorder, fingerprint time attendance recorder,RFID waterproof single door access control with keypad andmore

Key feature:

Fingerprint reader is a multifunction reader which can beconnected with any professional access Control and can beseamlessly connected with our companys access control
Fingerprint reader features single identification modes such asfingerprint identification, Password input and cardidentification
It is completely compatible with profession password keyboardreaders in present market, and can manage fingerprint data throughcommunication between computer and TCP/IP and RS485

Specifications:

Working voltage: 12V
Static working current: 150mA
Dynamic current: 250mA
Relay contact current: 3A, 120V AC/28V DC
LCD 2.4-inch TFT color screen
Operation temperature: 0 to 45°C
Dimensions: 185x80x35mm
Relative operation humidity: 20 to 60%
Fingerprint sampler: high-hardness optical fingerprintsampler
Keyboard 20 tact switch
Main board Smart KM dual-core low-consumption structure
Core algorithm HAS 8.0
Working mode offline/inline
Sensitivity level setting: 1N/11
Identification mode fingerprint/password/card fingerprint +password/fingerprint + card/card + password card + fingerprint +password
Capacity of fingerprint: 1,500
Capacity of management records: 60,000
Communication mode: RS485, TCP/IP
Language display: simplified/Traditional Chinese andEnglish
Alarm for removal prevention, overtime opening, tamperresistance, external input points
Fire fighting blocking available

Shenzhen Goldbridge Industrial Co.,Ltd:

Fast, punctual, safe delivery by DHL, TNT, FedEx, EMS, UPS
Payment terms: TNT, L/C,Western Union, cash
Warranty: 1-2 years warranty from date of delivery, lifetimetechnical support
