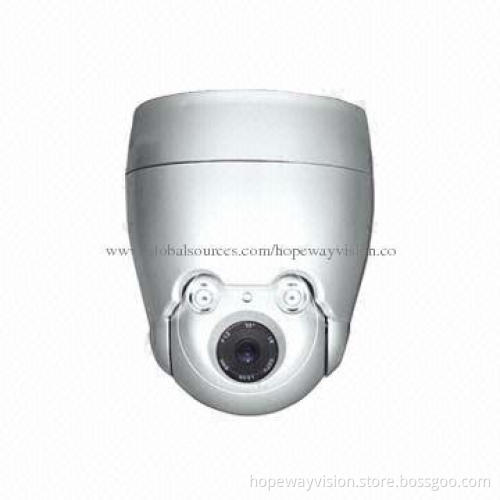

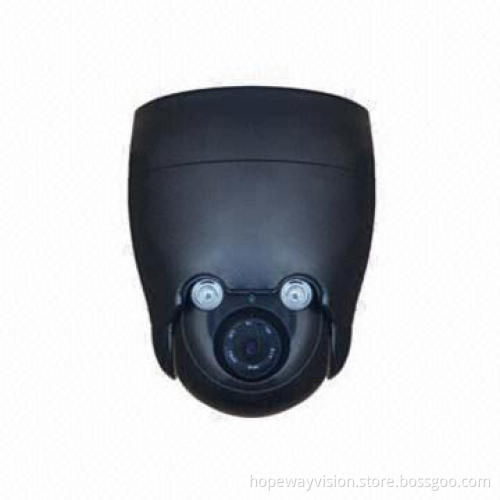

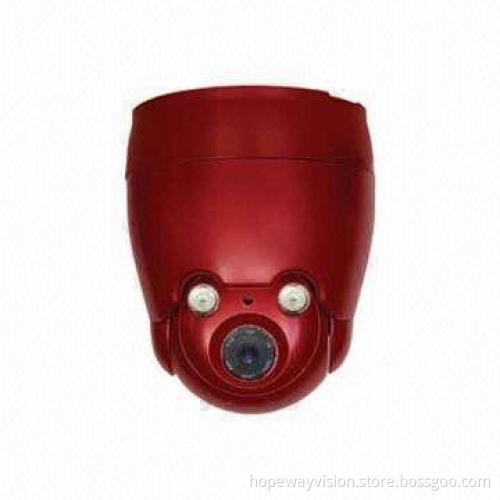

Indoor mini PTZ camera OSD menu
  • Indoor mini PTZ camera OSD menu
  • Indoor mini PTZ camera OSD menu
  • Indoor mini PTZ camera OSD menu
Indoor mini PTZ camera OSD menu
Indoor mini PTZ camera OSD menu
Indoor mini PTZ camera OSD menu

Indoor mini PTZ camera OSD menu

Get Latest Price
Payment Type:
T/T in Advance, L/C at Sight or Western Union
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T in Advance, L/C at Sight or Western Union
Product Description
Product Description
  • Descriptions:
    •  PWM function, intelligent IR illumination & power consumption is variable, dependant the zoom factor
    •  IR distance up to 50 meters, multiple languages for OSD menu, English, Spanish  and so on
    • Support ambient light detection, IR Illumination on 1-15 grade selectable
    • Park action incudes home position, 360° scan/A-B scan/cruise1-3
    • Dome ID, baud rate, communication protocol can be changed from OSD
    • Supported protocols: Pelco-D/P, others on special request
    •  Plastic housing, indoor
  • Specifications:
    • Horizontal rotations speed: 0.1-50°/s
    • Horizontal rotation range: 360°
    • Tilt rotation range: 94°
    • Auto flip:
      • Horizontal: 180°
      • Vertical: 90°
    • Auto control IR LED: PWM
    • A-B scan: User programmable
    • A-B scan speed: 01-64 level
    • Dwell preset: 05-60s
    • Preset points: 128
    • Go to preset speed: 50°/s
    • Guard tours: 3 groups
    • Guard points: Max.16 points, dwell time user selectable 02-60s
    • Park action: Home position, 360° scan/A-B scan/guard tour 1-3
    • Part time: 1-60 mins available
    • PWR on action: Memory as power off/360° scan/A-B scan/guard tour 1-3
    • Ambient light detection: Supported
    • IR Illumination on: 1-15 grades selectable
    • Communication protocol: Pelco-D, Pelco-P
    • Communication: RS485
    • Baud rate: 1200/2400/4800/9600bps
    • Operating temperatures:
      • Indoor: 0-40°
      • Outdoor:  -40-60°
    • Operating humidity: ≤95% non condensing
    • Heater & blower: Auto temperature control
    • Power: DC12 ≤3A
    • IR illumination distance: up to 50 meters
    • Power consumption: ≤ 20W
    • Lightning protection: transient voltage 3,000V
    • Compatible camara: Sony, LG, CNB, Samsung, HITACHI
    • LED angle of illumination: Ø16=2
  •  PWM function, intelligent IR illumination & power consumption is variable, dependant the zoom factor
  •  IR distance up to 50 meters, multiple languages for OSD menu, English, Spanish  and so on
  • Support ambient light detection, IR Illumination on 1-15 grade selectable
  • Park action incudes home position, 360° scan/A-B scan/cruise1-3
  • Dome ID, baud rate, communication protocol can be changed from OSD
  • Supported protocols: Pelco-D/P, others on special request
  •  Plastic housing, indoor
  • Horizontal rotations speed: 0.1-50°/s
  • Horizontal rotation range: 360°
  • Tilt rotation range: 94°
  • Auto flip:
    • Horizontal: 180°
    • Vertical: 90°
  • Auto control IR LED: PWM
  • A-B scan: User programmable
  • A-B scan speed: 01-64 level
  • Dwell preset: 05-60s
  • Preset points: 128
  • Go to preset speed: 50°/s
  • Guard tours: 3 groups
  • Guard points: Max.16 points, dwell time user selectable 02-60s
  • Park action: Home position, 360° scan/A-B scan/guard tour 1-3
  • Part time: 1-60 mins available
  • PWR on action: Memory as power off/360° scan/A-B scan/guard tour 1-3
  • Ambient light detection: Supported
  • IR Illumination on: 1-15 grades selectable
  • Communication protocol: Pelco-D, Pelco-P
  • Communication: RS485
  • Baud rate: 1200/2400/4800/9600bps
  • Operating temperatures:
    • Indoor: 0-40°
    • Outdoor:  -40-60°
  • Operating humidity: ≤95% non condensing
  • Heater & blower: Auto temperature control
  • Power: DC12 ≤3A
  • IR illumination distance: up to 50 meters
  • Power consumption: ≤ 20W
  • Lightning protection: transient voltage 3,000V
  • Compatible camara: Sony, LG, CNB, Samsung, HITACHI
  • LED angle of illumination: Ø16=2
  • Horizontal: 180°
  • Vertical: 90°
  • Indoor: 0-40°
  • Outdoor:  -40-60°
