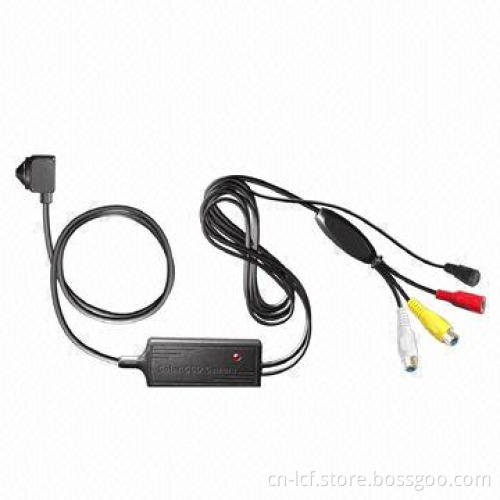

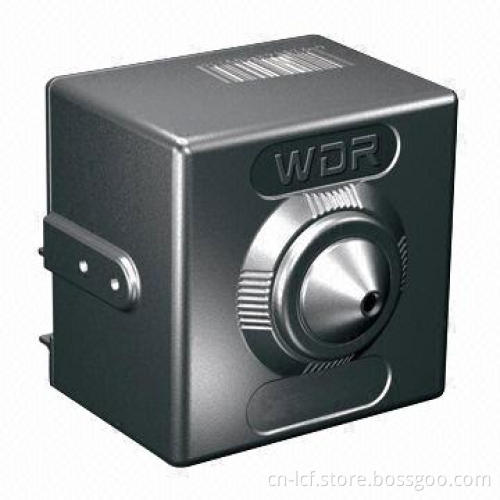

Very Small Mini Camera for ATM Use

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T in Advance, Western Union or PayPal

Product Description

1/3" Sony Super HAD CCD

Effective pixels:

PAL: 795(H) x 596(V) 470K

NTSC: 811(H) x 508(V) 410K

Horizontal resolution: 420, 600 and 700TVL

Lens: F3.7mm pinhole lens (others are optional)

Lux:

Colored mode: 0.01lux

Black: 0.001lux

Scanning system: 2:1 interlace

S/N ratio: more than 50dB

Synchronizing system: interior synchronization

Scanning frequency:

Gamma system: γ = 0.45

White balance: automatic (2,400 - 8,000°K)

Video output: 1Vp-p, 75Ω, negative

Electronic shutter time:

Power: DC 12V (±10%) 100mA

Operating temperature: -10 to 50°C (humidity: 10 - 60%RH)

Store temperature: -20 to 60°C, 95% (humidity: 10 - 60%RH)

Size (D x L): 12*12 or 16*16mm

(H):

PAL: 15.625kHz

NTSC: 15.734kHz

(V):

PAL: 50Hz

NTSC: 59.94Hz

PAL: 1/50 - 1/100,000sec

NTSC: 1/60 - 1/100,000sec audio
