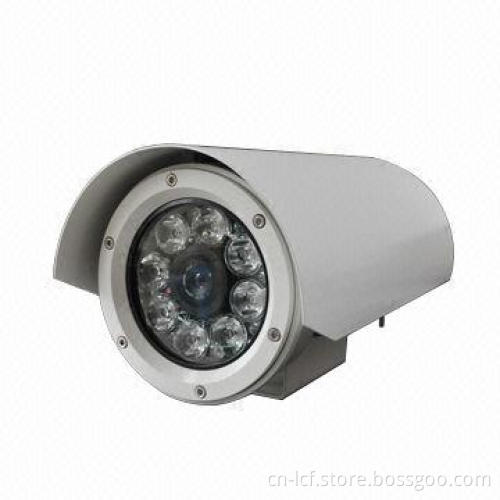

30M Fixed Stainless Steel Explosion-proof IR Camera, Using 304 Stainless Steel, IP68 Classes

30M Fixed Stainless Steel Explosion-proof IR Camera, Using 304 Stainless Steel, IP68 Classes

Get Latest Price

Payment Type:: T/T in Advance, Western Union or PayPal

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T in Advance, Western Union or PayPal

Product Description

Application environments:

Applicable for the factories having the explosive mixturesformed from class IIA, IIB andIIC T1-T6 group flammable gas, steamwith air in area no.1, no.2, and appearing the explosive hazardousarea due to the mixture of flammable dust and air in area no.20,no.21 and no.22, such as oil field, chemical plant, port, oilstorage, steamship, oil drilling platform, gas stations, coal mine,aviation, military, medicine, steel, firecrackers production,machinery, food processing and storage

Manufacturing standards:

IEC60079-0:2007 (Explosive atmospheres - part 0: equipmentgeneral requirements)(GB3836.1-2010)
IEC60079-1:2007 (Explosive atmospheres - part 1: the equipmentprotected by D flame-proof housing) (GB3836.2-2010)
IEC61241-1:1999 (Electrical apparatus for using in the presenceof combustible dust - part 1: using the housing and the electricalequipment of surface temperature protection-limiting
The first chapter technical requirement for electricalequipment) (GB12476.1-2000)

Key features:

Integrate explosion-proof camera and infrared lamp withintelligent design, IR lamp turned on automatically when lack ofvisible light, IR cut shifted day and night, high quality cleardetailed vivid picture
Based on the second generation Sony Effio super HAD/ex-view HADproject ultra high pixel 960H (PAL: 976*582) CCD, the highestresolution of analog cameras up to 700TVL
Photographic properties dramatically increase, the minimumillumination as low as colour 0.001 lux at F1.2
Ingress protection: IP68
Input voltage: DC 12V
Working current: d2A
Image sensor: 1/3 Sony Super Effio HAD/ex-view HAD II CCDsensor
Resolution: 480TVL/600TVL/700TVL
Lens: 4mm/6mm/8mm/12mm
Signal-to-noise ratio: e75dB

Applicable for the factories having the explosive mixturesformed from class IIA, IIB andIIC T1-T6 group flammable gas, steamwith air in area no.1, no.2, and appearing the explosive hazardousarea due to the mixture of flammable dust and air in area no.20,no.21 and no.22, such as oil field, chemical plant, port, oilstorage, steamship, oil drilling platform, gas stations, coal mine,aviation, military, medicine, steel, firecrackers production,machinery, food processing and storage

IEC60079-0:2007 (Explosive atmospheres - part 0: equipmentgeneral requirements)(GB3836.1-2010)

IEC60079-1:2007 (Explosive atmospheres - part 1: the equipmentprotected by D flame-proof housing) (GB3836.2-2010)

IEC61241-1:1999 (Electrical apparatus for using in the presenceof combustible dust - part 1: using the housing and the electricalequipment of surface temperature protection-limiting

The first chapter technical requirement for electricalequipment) (GB12476.1-2000)

Integrate explosion-proof camera and infrared lamp withintelligent design, IR lamp turned on automatically when lack ofvisible light, IR cut shifted day and night, high quality cleardetailed vivid picture

Based on the second generation Sony Effio super HAD/ex-view HADproject ultra high pixel 960H (PAL: 976*582) CCD, the highestresolution of analog cameras up to 700TVL

Photographic properties dramatically increase, the minimumillumination as low as colour 0.001 lux at F1.2

Ingress protection: IP68

Input voltage: DC 12V

Working current: d2A

Image sensor: 1/3 Sony Super Effio HAD/ex-view HAD II CCDsensor

Resolution: 480TVL/600TVL/700TVL

Lens: 4mm/6mm/8mm/12mm

Signal-to-noise ratio: e75dB
